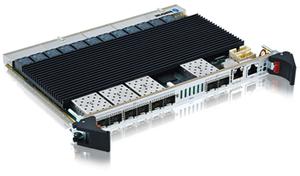

CP6930 - Kontron
Test Report Included for CP6930
Part:
CP6930
Manufacturer:
Kontron
Description:
6U 4HP CPCI and VME 10GbE Switch, PICMG 2.16 and VITA 31.1 compliant
Availability:
Available: Submit request for datasheets and more information.
The new Kontron CP6930 is a 6U hot-swappable CPCI and VITA 31 switch with 26 GbE ports and 6 high performance uplinks (10 GbE). The CP6930 provides built-in switching capacity for CompactPCI and VITA 31.1 installations at an unsurpassed price/performance ratio by implementing the latest switching technology. It applies to VoIP installations such as Call Servers, MediaGateways and Trunking Gateways in wireline and wireless networks, as well as VoIP systems in enterprise networks with high demands on performance.

Specifications

  • Leading edge technology based on BCM56626 chip set
  • 6x 10GbE via SFP+, 2x 1GbE via SFP
  • 24x Gigabit Ethernet Ports according PICMG2.16 / VITA31.1
  • Non-blocking layer 2 & 3 switching & routing, IPv6 compliant
  • Fully managed
  • DHCP Server and Boot media support
  • Hot swap, IPMI
  • Comprehensive firmware package

Features

Additional Forced Air Cooled
Connection PICMG2.16
Power Consumption max. 75W
Dimensions (H x W x D) 6U / 4HP
Ethernet/Bridging Protocols Include VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP
Function Managed Switch / Router
Operation Temperature 0�C to 60�C
Ports 24x GbE acc. PICMG2.16, 2x SFP, 6x SFP+, serial/Eth management
Routing Protocols Include OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP

Datasheets

CP6930 Data Sheet
CP6930 32 port 1/10GbE PICMG2.16 / VITA 31.1 Switch
[ datasheet_cp6930.pdf, 0.83 mb, Dec 2, 2015 ]

Manuals

CP6930 Users manual [restrictions apply]
[ cp6930-user-guide-v1.1.pdf, 3.66 mb, Nov 27, 2013 ]

CP6930-1 Users Manual [restrictions apply]
[ cp6930-1-user-guide-v1.0.pdf, 2.1 mb, Feb 12, 2016 ]

CP6930 Command Line Interface Reference Manual [restrictions apply]
[ cp6930_cli_reference_manual_v1_03.pdf, 23.04 mb, Nov 27, 2013 ]

Quick Start - Fastpath Configuration Guide [restrictions apply]
The Fastpath quick start guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1.1.pdf-2, 4.74 mb, Nov 27, 2013 ]
