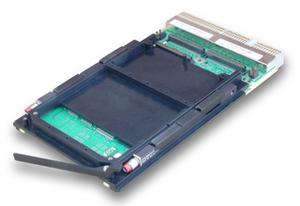

CP3210 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3210
- Manufacturer:
- Kontron
- Description:
- 3U cPCI Rugged PowerPC Single Board Computer
- Availability:
- Available: Submit request for datasheets and more information.
3U CompactPCI portfolio.
With a faster clock rate of 733 MHz, accelerated DDR SDRAM (266 MHz + 33.3 %) double the amount of system and user Flash and a Gigabit Ethernet port for faster data throughput and overall greater system performance, the Kontron CP3210 CompactPCI CPU board is an enhanced version of the highly reliable and powerful Kontron PowerEngineC7, a proven solution already embedded in major defense programs.
Lear more: Rugged & COTS Technologies.
Specifications
- IBM PowerPC 750FX at 733MHz
- cPCI System or Peripheral slot
- Rugged Conduction-Cooled
- Low-power consumption less than 11W typical
- 512 MB DDR SDRAM
- 128 KB nvSRAM with RT clock
- 256 MB User Flash
- 128 MB System Flash
- Multiple Operating Systems supported
Features
| CPU | PowerPC 750FX |
| CPU Clock | 733 MHz |
| DRAM | 512 MB of DDR SDRAM with error correction (ECC) |
| DRAM speed | 266 MHz |
| Chipset | Discovery III Host Bridge |
| Characteristics | IBM PowerPC architecture, System or Peripheral slot, Low-power, Rugged Conduction-Cooled (-40�C to +85�C), Multiple Operating Systems |
| Ethernet | 1x 10/100/1000 Base-T, 1x 10/100 Base-T |
| Power Consumption | 11 W |
| Rear I/O | 46 I/Os PMC, 1x Ethernet 10/100/1000 & 1x Ethernet 10/100, asynchronous EIA-232, simplified synchronous EIA-422/485, 4x GPIO, JTAG |
| CPU L2 Cache | 512 KB |
Datasheets
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
CP3210 3U cPCI PowerPC - CP3210
[ cp3210.pdf-2, 0.22 mb, Nov 27, 2013 ]
Manuals
CP3210 User's Guide [restrictions apply]
[ cadta57.pdf, 2.38 mb, Nov 27, 2013 ]
U-Boot User Manual for CP3210 [restrictions apply]
[ sddtf312e.pdf, 0.79 mb, Nov 27, 2013 ]
Whitepapers
Conduction Cooling Techniques for Rugged Computers
Conduction cooling for modular embedded computers have been used for many years in applications where air cooling is not appropriate. Standardization efforts in that domain have early helped to maitain interoperability of COTS products. The conduction cooled design techniques are continuously improving to meet the requirements for higher power dissipation and lower price.
[ whitepaper-conduction-cooling-techniques-for-rugged-computers_eng.pdf, 0.22 mb, Nov 27, 2013 ]
