CP-ASM6-P47 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP-ASM6-P47
- Manufacturer:
- Kontron
- Description:
- Ready available 6U CompactPCI Card Cages
- Availability:
- Available: Submit request for datasheets and more information.

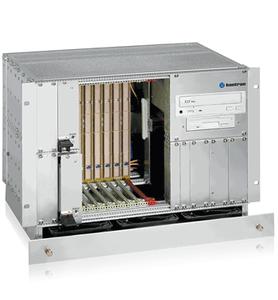

The 6U enclosure is made from anodized/chromed aluminium and integrates up to four P47 power supplies and an eight slot backplane. A 1U fan tray at the bottom side carries three cooling fans with sensored outputs.
The ready integrated card cage is designed to meet the requirements associated with rugged environments and varying ambience.
Specifications
- 19' racks with rear I/O and fans
- Redundant AC or DC power supplies
- Built-in 8 slot backplane with hot-swap support
- EMI protected and CE compliant
- Device bay option for 3.5-inch and 5.25-inch devices
Features
| Depth | 275 mm |
| 19' Rack Mounting | Cabinet or Wall mount |
| Backplanes | 4, 8 or 16 Slot |
| Drives | DVD / HDD / FDD optional |
| Power Supply | up to 6x P47 series |
| Cooling | Bottom to top fan |
| Housing | 84 HP / 6U |
| Packet Switched Backplane | optional |
| H110 | optional |
Datasheets
Datasheet CP-ASM6
[ datahseet_cp-asm6.pdf, 0.3 mb, Nov 5, 2014 ]
Manuals
8 slot backplane SR
[ cp6-bp8-p47-std_manual_backplane.pdf, 1.08 mb, Nov 27, 2013 ]
8 slot backplane SL
[ cp6-bp8-p47-std-sl_manual_backplane.pdf, 1.07 mb, Nov 27, 2013 ]
Generic backplane
[ 24229_manual_generic-backplane.pdf, 0.74 mb, Nov 27, 2013 ]
P47 200 Watt AC / CP3-SVE-P200AC
[ cp3-sve-p200ac_manual_power-supply.pdf, 0.13 mb, Nov 27, 2013 ]
P47 200 Watt DC / CP3-SVE-P200DC 48V
[ cp3-sve-p200dc_manual_power-supply.pdf, 0.13 mb, Nov 27, 2013 ]
Generic Power Supply Manual
[ 24139_06_sk-man-cpci-power-supply.pdf, 0.24 mb, Nov 27, 2013 ]
Variants
| CP3-SVE-P200AC CP3-SVE-P200AC |  | Positronic47 AC Power Supply Unit for 3U | more |
Warranty
10-Day Inspection Period: If the CP-ASM6-P47 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for CP-ASM6-P47 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
