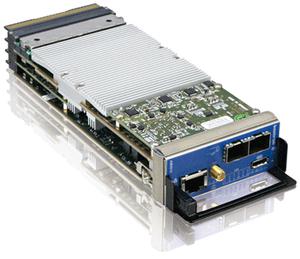

AM4904 / AM4910 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- AM4904 / AM4910
- Manufacturer:
- Kontron
- Description:
- High-End MicroTCA Carrier Hub (MCH) with Enterprise Class Ethernet Switching
- Availability:
- Available: Submit request for datasheets and more information.
To fit to the different needs of various applications the AM4904/AM4910 comes in four versions, (1) as a pure Gigabit Ethernet switching MCH (AM4904-BASE), in combination with (2) sRIO (AM4904-SRIO), or (3) PCIe switching (AM4904-PCIE) and (4) the highest bandwidth offering 10 Gigabit Ethernet switching (AM4910).
The powerful 600MHz processor for MCMC functionality and switching management enables a highly efficient MCH implementation for up to 12 AMCs, 2 cooling units and 4 power units and for usage in applications requiring a redundant architecture. Furthermore the support of Rear I/O functionality according to MTCA.4 is implemented. A sophisticated clock implementation provides various Telco clocks and the PCI Express Fabric Clocking distribution.
Designed to support Enterprise-Class fully-managed Layer2 switching capabilities the AM4904/AM4910 provides Quality-of-Service functionality like Traffic Priorization, Access Control and Multi-Cast including full 4K VLAN, Link Aggregation - to name just a few. The Layer3 management capabilities can be offered on project request.
Specifications
- High-sophisticated, full-featured MCH
- Supports all popular Fabric implementations for MicroTCA: GbE stand-alone or combined with 10 GbE or PCIe or sRIO switching
- Powerful Enterprise Class L2/L3 non-blocking managed GbE and 10 GbE switching capabilities
- Support for MicroTCA.4
- Linux-based high-performance 600 MHz PowerPC CPU for MicroTCA Carrier and Shelf Management, Switch Management
- Support for up to 12 AMCs, 2 cooling units (CU) and 4 power modules (PM)
- MCH update and cross-over Channel for redundant applications
- Full set of standard defined IPMI and MicroTCA management functions
- Comprehensive clock generation and distribution module
- Broad set of front panel interfaces: uplink ports and management port, clock input, control LEDs
Datasheets
AM4904-Series / AM4910 Datasheet
[ datasheet-am4904-am4910.pdf, 3.29 mb, Nov 11, 2014 ]
Manuals
AM4904 User Manual [restrictions apply]
[ am4904-user-guide-v1.2.pdf, 5.76 mb, Nov 27, 2013 ]
AM4910 User Manual [restrictions apply]
[ am4910-user-guide-v1.1.pdf, 4.75 mb, Nov 27, 2013 ]
AM4904/AM4910 CLI Reference Manual [restrictions apply]
[ am4904-am4910-cli-reference-v2.04.pdf, 3.01 mb, Nov 27, 2013 ]
Quick Start - Fastpath Configuration Guide [restrictions apply]
The Fastpath quick start guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1.1.pdf-2, 4.74 mb, Nov 27, 2013 ]
Accessories

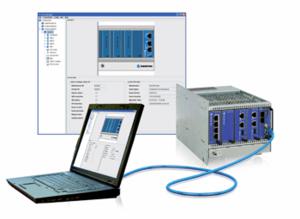

| OMVIU |  | MicroTCA Configuration Management Software | more |
