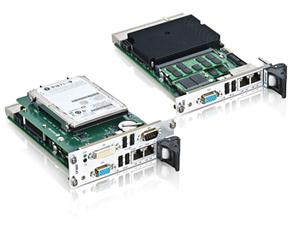

CP3002 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3002
- Manufacturer:
- Kontron
- Description:
- Intel Core, i7 / Celeron 3U CompactPCI CPU Board
- Availability:
- Available: Submit request for datasheets and more information.
The CP3002 supports the Intel Core, i7-610E and Core, i7-620LE processors with frequencies up to 2.53 GHz for high-performance needs, as well as the ULV processors Core, i7-660UE and Celeron U3405 for temperature- and
TDP-critical applications. The integrated next generation graphics core offers superior 3D and video performance
resulting in a up to doubled graphics performance compared to previous platform designs. Memory demanding applications can make use of up to 8 GB DDR3 SDRAM with Error Checking and Correcting (ECC). For onboard data storage the CP3002 offers up to 16 GB (32 GB) on a dedicated SATA Flash module or a CFast option via the 8HP extension module.
Specifications
- Intel Core, i7 processor, up to 2.53 GHz
- Up to 8 GB DDR3 memory with ECC
- Up to 16 GB (32GB) SATA NAND Flash
- Support of PCI Passive Mode
- Optional TPM support
- Broad rear I/O connectivity: GbE, USB, SATA, Serial Ports, VGA, GPIO's ...
- Broad range of software support: Linux, VxWorks, Wind River Linux, Windows XP, Windows 7, Windows Embbeded Standard 7, Windows Server 2003/2008, QNX �_
Features
| CPU | Intel Core,i7 up to 2.53 GHz, Celeron 1.07 GHz |
| DRAM | Max 8 GByte DDR3 (2x SODIMM's), with ECC |
| Chipset | QM57 |
| 4HP Version | 2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs |
| 8HP Version | DVI, COM, 2x USB 2.0, Reset, HDD Carrier, CFast socket |
| DRAM speed | 1066 MHz |
| Ethernet | 2x 1000Base-Tx, WOL (Wake-On-LAN) support |
| Flash Disk | SATA NAND Flash Module, up to 16GB (32GB) |
| Graphics | Internal |
| Power Consumption | 31W / 2.0 GHz LV |
| Rear I/O | Optional |
| System peripheral | Peripheral Mode supported |
Datasheets
CP3002 Datasheet
[ datasheet_cp3002.pdf, 0.85 mb, Sep 17, 2015 ]
Datasheet QNX Neutrino RTOS BSP for B3001 platform
[ dat_qnx_bsp_b3001_r10_01.pdf, 0.31 mb, Nov 27, 2013 ]
Datasheet for Wind River Linux BSP
[ dat_lin_bsp_wr_b3001_01.pdf, 0.76 mb, Jan 21, 2015 ]
Datasheet for Linux installation image B3001
for AM4020, AM5020, CP6002, CP3002, CP3002-RC, CP3002-RA
[ dat_lin_img_b3001_r13.pdf, 1.05 mb, Jan 21, 2015 ]
Datasheet for Linux BSP B3001
[ dat_lin_bsp_b3001_r14.pdf, 0.78 mb, Nov 27, 2013 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw_bsp_b3001_01.pdf, 0.83 mb, Nov 27, 2013 ]
Manuals
CP3002 User Manual [restrictions apply]
[ 1042-9252_20_sk-man-cp3002.pdf, 0.79 mb, Nov 27, 2013 ]
CP3002 Introduction Manual
[ 1042-9252_20_sk-man-cp3002_introduction.pdf, 0.2 mb, Nov 27, 2013 ]
CP3002 / CP3002-RC / CP3002-RA uEFI Manual
[ 1042-8946_40_sk-man-uefi-bios-cp3002_cp3002-rc_cp3002-ra.pdf, 0.28 mb, Apr 20, 2016 ]
