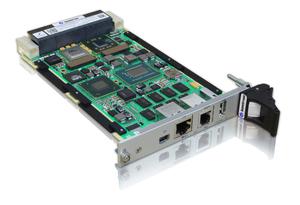

VX3042 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3042
- Manufacturer:
- Kontron
- Description:
- 3U VPX 3rd Gen Intel Core, i7 Dual-Core, Single Board Computer
- Availability:
- Available: Submit request for datasheets and more information.
Rugged SBC with multiple 10G Ethernet and Intel HD Graphics 4000
VX3042 is the Kontron 3U VPX rugged Single Board Computer with Intel HD Graphics 4000 and multiple 10G Ethernet. The SBC implements a new architecture poised to address specific applications and offer the ultimate performance for the Military, Aerospace and Transportation markets.
Based on Intel۪s 3rd Generation Core, i7 high performance computing architecture, and supported by Kontron Long Term Supply (LTS) services, VX3042 offers the best feature set.
The perfect blade for Console and Rugged Servers
In today��s network-centric battlefield, console and high-end servers applications require rugged computers to operate in the most difficult environments. Kontron VX3042 is designed around a high-end Dual Core CPU. This SBC features a configurable TDP, enabling to adjust the board performance to the exact mission profile required. Providing up to 16 GB DDR3-SDRAM, multiple Ethernet 10G and an XMC support, the VX3042 offers numerous configuration variants.
SWaP-C
The design is tailored to support systems with high size, weight and power and cooling demands
Connectivity
Designed for PCIe Gen3 8GB/s. I/O extensions at peak bandwidth. 4 SATA ports to the backplane: for secure RAID storage applications
Compatibility
VX3042 is compatible with all Kontron VPX building blocks (Payload boards, carriers, switches, backplanes, OS and drivers) and offers backward compatibility with the previous product generations (VX303x SBCs).
Write the code once, run on all the product line.
Long Term Supply (LTS)
Kontron Extended Life Cycle offers a 15-year life cycle organization on top of Intel embedded product line silicon life cycle. VX3042 is the ideal candidate for long term programs in compact high performance parallel computing solutions.
Specifications
- User Configurable TDP 25W/2.2 GHz, 17W/1.7 GHz, 14W/0.8 GHz
- Dual Ethernet 10G or 1G
- Intel HD Graphics 4000
- PCI Express Gen 3.0, with Kontron VXFabric,
- XMC with front and rear I/O Support
- Extended Life Cycle, Air-Cooled and Conduction-Cooled Versions
- Turnkey Evaluation/Development Platforms
- Up to 16 GB SDRAM with ECC
Features
| CPU | Intel Core, i7-3517UE Processor (4M cache, 2 execution cores, 4 threads) |
| Controller | Mobile Intel QM77 Express Chipset |
| Graphics | Integrated Graphics Core, Intel HD graphics 4000 |
Datasheets
VX3042 Datasheet
[ vx3042-datasheet-09-2015.pdf, 1.58 mb, Sep 17, 2015 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
EZ Platforms
[ ez-platforms-20-02-15-datasheet.pdf, 0.97 mb, Feb 23, 2015 ]
Manuals
VX3042 and VX3044 User's Guide [restrictions apply]
VX3042 and VX3044 users guide: 3rd gen Core i7 3U VPX SBC
[ cadta98-8e-vx304x-ug.pdf, 4.74 mb, Oct 16, 2014 ]
VX3042 and VX3044 - AMI BIOS User Reference Manual [restrictions apply]
[ sddtf96-8e-vx304x-bios.pdf, 11.24 mb, Jul 24, 2015 ]
VX3042 and VX3044 - PBIT User's Guide [restrictions apply]
[ sddtg14-3e-vx3040-pbit-ug.pdf, 0.4 mb, Jun 29, 2015 ]
EZ3-VX304x-00-L Quick Start [restrictions apply]
[ sddtg12-0e-vx304x-ez3.pdf, 0.18 mb, Nov 27, 2013 ]
EZ3-VX304x Getting Started [restrictions apply]
[ sddtg09-1e-ez3-vx304x-gs.pdf, 0.96 mb, Nov 27, 2013 ]
PB-VX3-4xx -3U-VPX Rear Transition Module User's Guide [restrictions apply]
[ cadtb03-0e-pb-vx3-4xx.pdf, 1.07 mb, Nov 27, 2013 ]
Whitepapers
VXFabric White Paper [restrictions apply]
[ whitepaper_en_vxfabric-v2-final.pdf, 5.6 mb, Nov 27, 2013 ]
Managing 3rd gen High Data Rates on VPX Backplanes [restrictions apply]
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.35 mb, Feb 11, 2014 ]
