EVA - Embedded Value Add - Kontron
Call for Price / Availability 888.528.9233
- Part:
- EVA - Embedded Value Add
- Manufacturer:
- Kontron
- Description:
- EVA - Embedded Value Add - the helpful software tools
- Availability:
- Available: Submit request for datasheets and more information.
EVA is included in the Kontron COM & SBC from Kontron Embedded Modules and is not for separate download and install!
EVA stands for 'Embedded Value Add' and is part of the Kontron IP initiative.

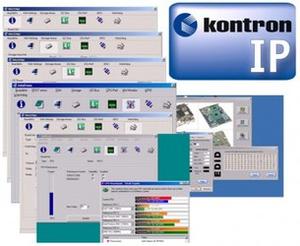

EVA offers hardware monitor, programmeable watchdog, performance control, board information data, etc.
EVA is the helpful software and concepts, like our JIDA32 and Smart Battery concept, etc.
EVA makes our products much better and easier to use for you in assembly, maintenance and operation.
ATTENTION: The list in the Specifications tab shows a gross overview of all supportive features. The range of features per individual product is dependant on the used hardware like CPU, chipset and controllers - and can therefore vary. Please see the related product manual for confirmed features and details.
Specifications
- EVA is onboard installed and for free included on these products:
- COM - Computer on Modules
(COMexpress/ETXexpress, microETXexpress, ETX, DIMM-PC, X-board) - SBC - Single Board Computers
- (EPIC, MOPS PC/104, JRex 3.5' and coolMONSTER PISA slot cards)
- The EVA tool-suite is Operating System independant and features:
- Programmable Hardware Watchdog
- I2C Bus
- Board Information Data Area
- EEPROM User Bytes
- Hardware Monitor
- Performance control
- mueC supported Processor Management
- INT15 / 32 Bit programming interface
- Customer specific CMOS defaults
- JRC - JUMPtec Remote Control
- JIDA32 - JUMPtec Intelligent Device Architecture
- JILI Intelligent LVDS interface - EDID compatible
