Micro Client 3 121 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- Micro Client 3 121
- Manufacturer:
- Kontron
- Description:
- Micro Client 3 121
- Availability:
- Available: Submit request for datasheets and more information.

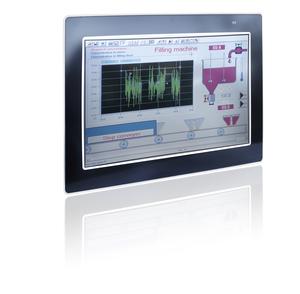

The Micro Client 3 touch panel computers are ideally suited for production line optimization and supervisory control applications. The new Micro Client 3 product family offers all the latest features required for intelligent displays in an industrial environment like multitouch functionality for operating and monitoring, modern industrial design and widescreen format.
Based on the Intel Atom, D2550, dual core the Micro Client 3 offers high computing performance and outstanding graphic performance.
The LED backlights for all devices ensure longer lifetime and the gold cap makes the Micro Client 3 maintenance-free.
Shock and vibration resistance, thermal stability and compliance with the strictest EMC standards are standard features for all Micro Clients.
Specifications
- 12,1' display in 4:3 format, resolution 1024 x 768 px
- Resistive touch 5-wire
- Higher performance with Intel Atom, D2550, dual core
- LED backlight for all devices (longer life time, > 50kh)
- Extended interface support (e.g.4x USB rear, 1x DP)
- Outstanding graphical performance
Features
| Dimensions (H x W x D) | 286x347x68 mm |
| Display | 12.1'TFT |
| I/O Standard | 2x USB 2.0, 2x USB 3.0, 2x LAN 10/100/1000, 1x RS232, 1x RS232/RS422/RS485 opt. 1x DP |
| Processor | Intel Atom, Cedarview D2550, dual core up to 2x 1.86GHz |
| Weight | ca. 4.5 kg |
Datasheets
Datasheet Micro Client 3
[ datasheet_micro-client-3-3w.pdf-3, 0.5 mb, Jun 24, 2015 ]
Manuals
Manual Micro Client 3 (Release Candidate)�
[ mac-3_user_guide_v1.0_web_en.pdf, 3.84 mb, Jan 10, 2014 ]
Warranty
10-Day Inspection Period: If the Micro Client 3 121 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for Micro Client 3 121 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
