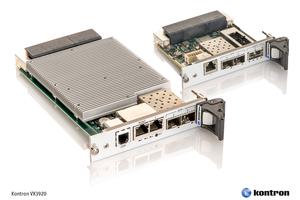

VX3920 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3920
- Manufacturer:
- Kontron
- Description:
- High End L2/L3 OpenVPX 10G Switch
- Availability:
- Available: Submit request for datasheets and more information.
Offering a switching capacity of 320Gb/s the non-blocking fully managed L2/L3 Gigabit Switch provides 24 x 10 G BaseKR ports to the backplane. Two 10 Gigabit ports are also available on the front panel through SFP+ ports, two RJ45 GETH and one RJ11 serial line ports. One GETH and the serial line port can be used for out-of-band management.
VX3920 is currenly available in an air-cooled version (0�C to +55�C) and soon in rugged conduction-cooled version (-40�C to + 85�C).
Specifications
- L2/L3 non blocking 10G switch
- 3U Open VPX, MOD3-SWH-2F24U module
- Backplane: 24 10G BaseKR, 1 SGMII
- Front Panel: 2 SFP+, 2 RJ45, 1RJ11 (serial)
- Supports: VLAN, Link Aggregation, Spanning Tree
- QoS, Flow Control
- GRVP, GMRP Function managed, Port Mirrorring
- Out of Band Management
- 5V only design, 50W (TBC)
Datasheets
VX3920 3U VPX 10G ETH L2/L3 Switch Data Sheet
[ vx3920-datasheet-07-2015-.pdf, 1.25 mb, Jul 16, 2015 ]
Manuals
VX3920 User Manual [restrictions apply]
User Guide to VX3920 High End L2/L3 OpenVPX 10G Switch, including supported MIBs and RFCs.
[ vx3920-user-guide-v1.00.pdf, 1.77 mb, Jul 14, 2015 ]
VX3920 CLI Reference Manual [restrictions apply]
VX3920 Command line interface (CLI) to the FASTPATH software
[ vx3920-cli-reference-manual-v1.0.pdf, 4.23 mb, Jun 1, 2015 ]
VX3920 Errata Sheet [restrictions apply]
Errata for Kontron VX3920 Ethernet SwitchFor SW BETA Release 1.00 and for all SW GA releases
[ vx3920-errata-v1.01.pdf, 0.09 mb, Jul 14, 2015 ]
Whitepapers
Managing 3rd gen High Data Rates on VPX Backplanes [restrictions apply]
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.35 mb, Feb 11, 2014 ]
