CP-ASM4-SWMP - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP-ASM4-SWMP
- Manufacturer:
- Kontron
- Description:
- Card Cage for 3U CPCI Switched Multiple CPU Platforms
- Availability:
- Available: Submit request for datasheets and more information.

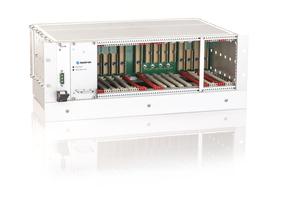

The CP-ASM4-SWMP is a 19� 4U front I/O card cage, including backplane, power supply, and 1U fan tray, ready integrated and EMI protected.
Three 3U CPCI segments with 6-2-2 slots are provided. The Card Cage is prepared to carry a managed or unmanaged Ethernet Switch, to efficiently handle communication networks. By a dedicated switch slot, the backplane provides Gigabit Ethernet connections from the switch rear ports to the system slots.
The universal 100W PSU is operating at a wide range of 16.8-137.5 VDC.
Specifications
- For Redundancy, Diagnostics, or Supervision
- For up to 3 Controllers in one Rack
- Integrated Network Access via GbE Switch
- CompactPCI: robust, modular, proven, long-lasting
Datasheets
Datasheet CP-ASM4-SWMP
[ datasheet-cp-asm4-swmp.pdf, 0.6 mb, Nov 11, 2014 ]
Manuals
User Manual CP-ASM4-SWMP [restrictions apply]
[ 1055-2661_10_sk-man-cp-asm4-swmp_user_guide_r10.zip, 6.46 mb, Nov 27, 2013 ]
Variants
| CP3-SVE-M100DC |  | Ultra Wide Range EN50155 Power Supply | more |
