- Part:
- CP-ASM4-TT
- Manufacturer:
- Kontron
- Description:
- 3U CompactPCI Table Top Rack for Development
- Availability:
- Available: Submit request for datasheets and more information.

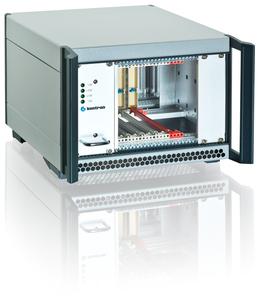

For comfortable use on the labor desk, the housing is equipped with feet, handholds, a 8HP power input module on the rear side with filter, IEC input plug, double fuse, and on/off switch, and finally with two 12VDC radial ventilators.
A 180W power supply enables 120 or 230 AC input voltage. The integrated backplane provides a compactPCI system slot on the right and 4 peripheral slots, including rear I/O option. The entire card cage is EMI shielded and ready integrated.
CP-ASM4-TT is prepared for use with any 3U system controller board out of Kontron's rich portfolio, including the 8HP variants whcih provide more I/O interfaces and a 2.5' HDD/SSD mounting option.
On the right of the controller board, there is space for integration of a SATA Kit CP-HDD-S-KIT-S on request, providing a carrier with backplane addition for a separated 2.5' SATA II HDD or SSD.
Specifications
- Universal Card Cage for the Labor Desk
- Ready Integrated with Mounting Feet, Fans, AC Supply
- 5 Slot Backplane with Rear I/O Option
Features
| Dimensions (H x W x D) | 190 x 245 x 275 (297 w handle); 4U / 44 HP |
| Temperature | 0�C to +50�C |
| Humidity | non-condensing, 20...90% at 40�C |
| Weight | approx. 4900 g |
| Backplanes | 5 slot, system slot right, 32bit, rear-I/O, M-connector for PSU |
| Power Supply | 12 HP, 3U, status LED at front, Input 120/230 VAC, Output 180W, 3.3 V/14A, 5V/20A, +12V/2A, -12V/1A |
