CMB - CMB-3U Kontron | Atlas Automation

Part:: CMB - CMB-3U
Manufacturer:: Kontron
Description:: Chassis Monitoring Board
Availability:: Available: Submit request for datasheets and more information.

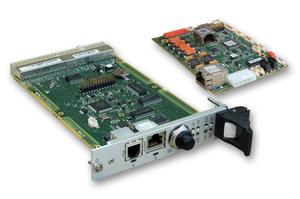

CMB (Chassis Monitoring Board) is the ideal board for simple and robust control and monitoring operations. The CMB is in charge of continuously watching and reporting critical vital signals of the system, and would trigger alarm in case of detection of abnormal values. CMB monitors and controls the chassis (temperatures, fans, power supplies, I/Os), and the CPU boards (status, reset). The entire system can be controlled remotely using a serial line or the network (Telnet, HTTP and SNMP), including power on/off and CPU boards individual reset. CMB can be used in Kontron VME, VPX or CompactPCI chassis.

Specifications

System monitoring and control of critical signals: temperature, fans, power supplies, board status and reset
Alarm through chassis front panel LEDs, and SNMP notifications (trap or inform)
Management through serial line, Telnet, HTTP, and SNMP
Operating Temp.: -40�C to +85�C
For use in VME, VPX and cPCI chassis

Features

Power Supply

5V (4.5V to 6V)

Power Consumption

200 mA

Mechanical Dimensions

61.7mm x 76.6mm

Datasheets

CMB datasheet
[ cmb_datasheet.pdf, 1.41 mb, Nov 27, 2013 ]

Manuals

CMB - Chassis Monitoring Board User's Guide [restrictions apply]
[ cadta82-7e-cmb-ug.pdf, 0.85 mb, Oct 23, 2014 ]

CMB-3U - 3U Chassis Monitoring Board User's Guide [restrictions apply]
[ cadtb11-1e-cmb3u-uguide.pdf, 2.41 mb, Oct 23, 2014 ]

Warranty

10-Day Inspection Period: If the CMB - CMB-3U purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for CMB - CMB-3U covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
