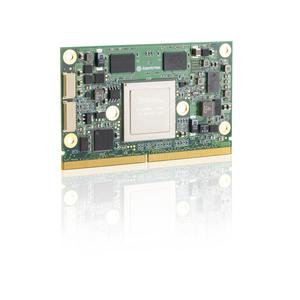

SMARC-sAT30 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- SMARC-sAT30
- Manufacturer:
- Kontron
- Description:
- Module based on
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- SMARC Module based on Cortex A9 technology
- Nvidia Tegra 3 Quad Core 1.2 GHz
- For strong graphics demand
Features
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82mm x 50mm |
| CPU | NVIDIA Tegra 3, Quad Core ARM Cortex A9 |
| Main Memory | on Board up to 2GB DDR3 |
| Graphics Controller | Dual Displays |
| Ethernet Controller | integrated |
| Ethernet | 10/100/1000 Mbit/sec |
| SATA | 1x SATA |
| Flash Onboard | 2-64GB eMMC |
| PCI Express / PCI support | x1 PCIe Gen 1 |
| Panel signal | LVDS Single Channel 18 bit / 24 bit - 18 bit compatible. Support for dual channel 24 bit LVDS HDMI |
| USB | 3x USB 2.0 ports (one OTG) |
| Serial | 2x RX/TX (Ser1/3) 2x UART (Ser0/2) |
| Interface | 1x SDIO, 1x eMMC, 2x SPI, 5x I2C, 3x I2S, 12x GPIO, SPDIF, WDT |
| Operating System | Android ICS, Linux |
| Power Supply | 3V to 5.25V - operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supplies |
| Power Consumption | 5 Watts typical |
| Temperature | 0 - 70C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
SMARC-sAT30 Datasheet (Release Candidate)�
[ datasheet_smarc-sat30.pdf, 0.95 mb, Sep 14, 2015 ]
Manuals
SMARC-sAT30 User Guide
[ smarc-sat30-user-guide-v1.0-.pdf, 4.14 mb, Nov 27, 2013 ]
Whitepapers
SMARC Specification Overview
[ kontron_smarc_specification_overview.pdf, 1.75 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC,-sAT30 4x1.2 1/16GB 51001-1016-12-4 |  | SMARC,-sAT30 based on nVidia T30 4x 1.2GHzHz 1GB DRAM 16GB SSD Flash | � |
| SMARC,-sAT30 4x1.2 2/16GB 51001-2016-12-4 | | SMARC,-sAT30 based on nVidia T30 4x 1.2GHz 2GB DRAM 16GB SSD Flash | � |
Accessories
| ULP-COM Evaluation Carrier Board 51100-0000-00-0 | | ULP-COM Evaluation Carrier Board | more |
