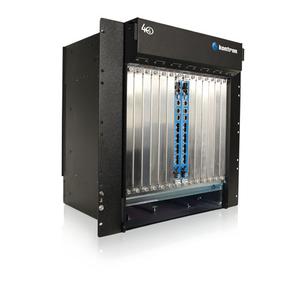

OM9141-40G - Kontron
Call for Price / Availability 888.528.9233
- Part:
- OM9141-40G
- Manufacturer:
- Kontron
- Description:
- ATCA 40G Open Modular Core Platform
- Availability:
- Available: Submit request for datasheets and more information.
The OM9140-40G Open Modular Core platform is a�basic platform building block to provide an ATCA�infrastructure as per the PICMG specification and is the�foundation for pre-integrated carrier grade systems.
A core ATCA-built infrastructure enables Telecom�Equipment Manufacturers (TEMS) to take full�advantage of the ATCA eco-system and enjoy the�freedom of choice to build dedicated platforms for�wireless and wireline applications.
A pre-integrated Open Modular Core�platform saves the Telecom Equipment Manufacturer�significant development time and resources by�using standard based hardware and integrated data�transport and management functionalities. Platform�thermal pre-qualification according to standardbased�guidance, such as CP-TA B.4, ensures thermal�interoperability and the flexibility to create different�platform configurations of CPU, NPU, DSP storage or
even specialized and custom ATCA based line cards that�meet the requirements for 3G/4G, LTE, WIMAX, GPON
and IP-TV network elements.
Typical applications to build systems based on the�OM9140��40G Open Modular Core platform include�but are not limited to:
- 3G/4G and LTE Network Elements
- GPON/EPON and Optical Transport Network�Elements
- QoS and Test Platform Network Elements�Service and Content Delivery platforms�with Security and DPI functionality
Also included is redundant Shelf Management with�interoperability-tested Shelf Manager Cross Connects�as per PICMG specification, and optional systems�management functionality based on the COM express�form factor �� 25GB and 50GB SATA MO-297�or 16GB eUSB system management storage option��� which resides on the AT8910 for centralized system�management. A Telco Alarm panel provides telecom�grade external system alarm notification.
Specifications
- Chassis/ mechanical, power and cooling
- Data Transport for Base and Fabric interconnectivity
- Platform Manageability such as Shelf Management and System Management with a standard-based HPI implementation
- Open Modular Core Platform interoperability
- Based on PICMG 3.0 and PICMG 3.1 with support for 1, 10 and 40GbE support.
- 13U high, 19� with brackets for 19� equipment practice
- 12 available slots for Node Blades and RTMs
- Front to rear cooling supports 300W per slot plus 35W per RTM
- 4x hot-swappable fans
- Front pluggable Air Filter with redundant presence sensor
- Redundant DC Power Entry Module (PEM) with Fuse failure and reverse voltage indicator for -40 to -72V DC
- Redundant Shelf Field Replaceable Unit with data boards with Telco Alarm
- Redundant, hot swappable Shelf Manager with RS232 and Ethernet front access (single Shelf Manager operation support)
Datasheets
OM9141-40G
[ datasheet_om9141-40g-dscs4.pdf, 1.17 mb, Sep 28, 2015 ]
