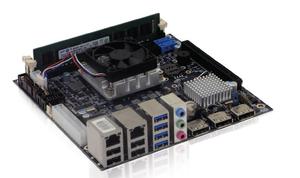

KTQM87/mITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTQM87/mITX
- Manufacturer:
- Kontron
- Description:
- Embedded mITX Mobile Motherboard with Intel QM87 and 4th Generation Intel 22nm Dual and Quad Corei7/i5/i3, Pentium & Celeron CPUs
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron KTQM87/mITX excels with a wide selection of interfaces. In addition, customer-specific functions can be integrated via standard extension slots such as PCI Express and Mini PCIe as well as Kontron۪s own embedded Feature Connector. With its SIM-card socket, the motherboard is also destined for deployment in intelligent, distributed ��Internet of Things۪ applications. By supporting the Intel Advanced Vector Extensions (AVX) 2.0, the board offers DSP class I/O processing performance. This qualifies the ECC supporting Kontron KTQM87/mITX as an ideal platform for industrial real-time control applications. Due to the fact that the boards have a 7 year long-term availability, OEMs always obtain the same boards for additional or replacement systems and thus manage large field deployments extremely efficiently.
The Kontron KTQM87/mITX Mini-ITX embedded motherboard is based on the Intel QM87 chipset and supports up to 16 gigabytes of DDR3 RAM with ECC support. It is equipped with a dual- or quad-core 4th generation Intel Core i3/i5/i7 processor (FCBGA1364) with up to 3.4 GHz. For application-specific extension cards, it provides both a PCI Express Gen 3.0 as well as two Mini PCIe slots. Further peripherals connect via four USB 3.0 and eight USB 2.0 ports as well as via Kontron۪s embedded Feature Connector which is capable to execute up to 160 GPIOs. Additionally, the Feature Connector can be delivered application-ready with the Kontron KT Evaluation Breakout Board, which further simplifies and accelerates system designs. The new embedded motherboard supports up to three independent high resolution displays or one 4K monitor via DisplayPort 1.2. The additional LVDS interface enables the connection of common and cost efficient embedded displays. Two GbE interfaces �� one with Intel AMT 9.0 support �� allow for extended network options. A large choice of memory media connects via four SATA interfaces with RAID 0/1/5/10 functionality: 2x 1.5/3 Gbit/s, 2x SATA Gen 3.0 interfaces with up to 6 Gbit/s bandwidth and as well as 2x mSATA Gen 3.0 for on-board SSD (multiplexed with mPCIE). HD audio and two COM interfaces round off the motherboard۪s feature set.
First sample boards of the new embedded Mini-ITX Motherboard Kontron KTQM87/mITX are available now.
Specifications
- Long term available Embedded mITX mobile class motherboard
- Mobile Class high performance CPU, graphics, and media performance supporting 3 independent displays pipes
- Graphics APIs DirectX 11.1, OpenGL 4.x, OpenCL 1.2
- 3x Display Port for flexible, high resolution display drive
- LVDS interface
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supports: 4th Generation Intel 22nm Dual and Quad Core i7, i5, i3 Intel Core i7-4700EQ, 2.4GHz (3.4 GHz) 47W Intel Core i5-4400E, 2.7GHz 37W Intel Core i3-4100E, 1.6GHz 37W Intel Celeron 2000E, 2.2GHz, 37W |
| Chipset | Intel QM87 |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | Up to 20 GT/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 4600 internal |
| Graphics | 3x Display Port (1x PCIe x16) LVDS 18/24bit |
| Ethernet Controller | 1x Intel Clarksville WGI218LM (supporting AMT 9.0) 1x Intel Pearsonville I211AT |
| Ethernet | 2x Intel GB LAN (1x AMT 9.0 support) |
| Hard Disk | 4 x SATA (SATA 150/300/600) w. RAID 0,1,5,10 support 2x mSATA |
| Parallel Port | n/a |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x16 |
| Mini-PCI | 2x mini-PCI Express |
| USB | 4x USB 3.0/2.0 8x USB 2.0 (2x Internal Header, 2x PCIe sockets) |
| IEEE 1394 Firewire | n/a |
| Serial | 2x RS232 |
| Rear I/O | 4x USB3.0/USB2.0 4x USB2.0 3x Display port 2x RJ45 LAN 1x3 mini Audio Jack tower |
| Audio Controller | VT1708S HD Audio 7.1 channel surround sound |
| Keyboard | KBD/MSE pinrow connector |
| Special Features | DAC up to 160 GPIO TPM KT embedded feature port with ADC Intel AES security |
| BIOS | Phoenix |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win XP, Win7, WES7 32/64bit, Win8 Linux VxWorks |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 IEC 60068-2-27 IEC 60068-2-29 IEC 60068-2-64 ROHS |
Datasheets
Datasheet KTQM87/mITX
[ datasheet_ktqm87-mitx.pdf, 1.24 mb, Jan 8, 2016 ]
Manuals
KTD-N0886 KTQM87 Users Guide
[ ktd-n0886-c_ktqm87-users-guide.pdf, 8.35 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTQM87/mITX i3-4100E 810552-4500 |  | KTQM87/mITX i3-4100E, w. 2x GB LAN, 3x DP, AMT 9.0, RAID, Incl. Active Cooler | � |
| KTQM87/mITX i5-4400E 810551-4500 | | KTQM87/mITX i5-4400E, w. 2x GB LAN, 3x DP, AMT 9.0, RAID, Incl. Active Cooler | � |
| KTQM87/mITX i7-4700EQ 810550-4500 | | KTQM87/mITX i7-4700EQ, w. 2x GB LAN, 3x DP, AMT 9.0, RAID, Incl. Active Cooler | � |
| KTQM87/mITX i7-4860EQ 810554-4500 | | KTQM87/mITX i7-4860EQ, w. 2x GB LAN, 3x DP, AMT 9.0, RAID, Incl. Active Cooler | � |
| KTQM87/mITX Cel-2000E 810553-4500 | | KTQM87/mITX Cel-2000E, w. 2x GB LAN, 3x DP, AMT 9.0, RAID, Incl. Active Cooler | � |
Accessories
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |
| Accessory kit for KTQM87 826603 | | Accessory kit for KTQM87 | � |
