- COMe Ref.Carrier T6
- Manufacturer:
- Kontron
- Description:
- COM Express Reference Carrier Type 6
- Availability:
- Available: Submit request for datasheets and more information.
Reference Carrier Board for COM Express Pin-out Type 6 Computer-on-Modules
Kontron's Reference Carier Bord in mini-ITX form factor for future-oriented COMs with Pin-out Type 6. A small reference design for small and portable solutions with SIM card support for mobile communication, USB 3.0 and all Digitial Display Interfaces (DisplayPort, LVDS, DVI, HDMI).
Specifications
- COM Express Rev. 2.0, Pin-out Type 6
- mini-ITX Form Factor (170mm x 170mm)
- DVI-I, DisplayPort, HDMI, LVDS
- SIM card support, Smart Battery, USB 3.0
Features
| Compliance | COM Express Rev. 2.0 Pin-out Type 6 |
| Dimensions (H x W x D) | 170 x 170 mm (mini-ITX) |
| Supported Modules | COM Express basic or compact with pin-out Type 6 |
| Graphics | 1x LVDS/JILI FFC 40 connector 1x DVI-I (VGA, DDI1) 1x DP++ (DDI2) 1x HDMI (DDI3) |
| Hard Disk | 3x SATA 1x eSATA |
| USB | 2x USB 3.0 4x USB 2.0 |
| PCI Express / PCI support | 1x PCI Express x4 1x miniPCIe (with USB and SIM card) 1x Express Card (with USB) |
| Audio | Realtek ALC886 HD-Audio S/PDIF in/out, Toslink 5.1 Audio jacks Front Panel Audio connector |
| Ethernet | 1x 10/100/1000 MBit RJ 45 connector |
| Serial | 2x UART on pin-header (from module) |
| Special Features | SIM Card 1x PWM Fan SPI boot |
| Common Features | Feature Connector Port80 POST Code Display Diagnostic LED PWR/RST Buttons |
| Options | Carrier EEPROM Compatibility to Type 10 modules |
| Power Supply | ATX power supply 20+8pin 8.5 - 20V Single Supply support 2x 10.8V Smart Battery support |
| Temperature | Operation: 0� to 60�C Storage: -30� to 85�C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
Starterkits and Evaluation Boards for COM Express, Datasheet (Release Candidate)�
Datasheet Starterkits and Evaluation Boards for COM Express.
[ datasheet_comexpress_evalboards-starterkits_web.pdf, 0.9 mb, Nov 7, 2014 ]
Manuals
User Guide for COMe Ref. Carrier T6
[ adasm100.pdf, 1.03 mb, Mar 21, 2016 ]
Variants
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | � |

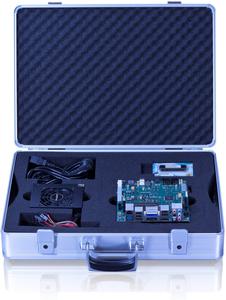

| COMe Starterkit Ref. T6 38114-0000-00-S |  | Starterkit with COMe Reference Carrier T6 | more |
Accessories
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| ADA-LVDS-DVI 18Bit 9-5000-0352 | | 18bit LVDS (JILI) to DVI-D, including the flatfoil cable | � |
| ADA-LVDS-DVI 24Bit 9-5000-0353 | | 24bit LVDS (JILI) to DVI-D, including the flatfoil cable | � |
| ADA-Type6-DP3 96007-0000-00-7 |  | COM Express Type 6 carrier board adapter for 3x DDI to 3x DisplayPort + 1x eDP | � |
| KAB-ADAPT-DP-HDMI 96084-0000-00-0 | | Displayport to HDMI Adapter | � |
| KAB-ADAPT-DP-VGA 96083-0000-00-0 | | Displayport to VGA Adapter | � |
| KAB-ADAPT-DP-DVI 96082-0000-00-0 | | Displayport to DVI Adapter | � |
| ADA-DP-LVDS 96006-0000-00-8 |  | Converts DisplayPort to LVDS | � |
