CPS-ASM4 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CPS-ASM4
- Manufacturer:
- Kontron
- Description:
- Integrated Card Cages for 3U CompactPCI Serial
- Availability:
- Available: Submit request for datasheets and more information.

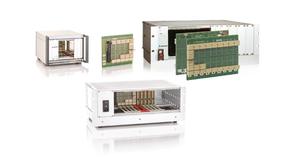

CPS-ASM4 already enables most system platform solutions: Card cages 19' rackmount, 42HP wallmount and 44HP tabletop, with AC or DC Power Supplies, backplanes of different slot count, with system slot right or left, with rear-I/O options for peripheral and system slots.
Saving the investments into CompactPCI: No change for housing, cooling, installation.
The mechanical design of CPS-ASM4 is backward compatible with Kontron��s classic 3U CompactPCI system portfolio. Housing and cooling all stay the same, rackmount installations can be re-used when the next generation application will be based on CompactPCI Serial racks.
Saving the investments into CompactPCI: CompactPCI periphery can be re-used.
Migrating from CompactPCI to CompactPCI Serial is easy: A so-called ��Hybrid� card cage is equipped with two usual backplanes, one which carries classic CPCI boards and the other CompactPCI Serial boards. The only additionally needed building block is a PCIe-to-PCI bridge as an optional feature of the processor board��s I/O extension card!
- Simply use a bridge option CPCI-S to CPCI
- No additional bridge boards needed besides the CPU-Extension
- No need for intermediate standards
- No special backplane needed
Rear-I/O option for peripheral and system slots.
Connector P6 is alternatively used for RIO signals, to enable RIO also for the system slot.
Specifications
- Rich Portfolio 84/42HP, Backplanes, Fans, PSU
- Simple Integration Path from Classic CPCI
- Rear-I/O Option for All Slots
- EMI Protected and CE Compliant
Datasheets
Datasheet CPS-ASM4 Series
[ datasheet-cps-asm4.pdf, 1.7 mb, Nov 11, 2014 ]
Manuals
CompactPCI Serial Systems User Guide [restrictions apply]
[ 1054-8971_rs-02_sk-man-cps-asm4-sug.pdf, 5.09 mb, Jan 10, 2014 ]
