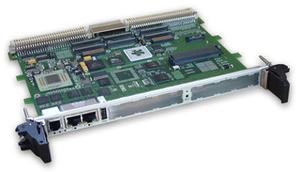

VM6250 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VM6250
- Manufacturer:
- Kontron
- Description:
- 6U VME High Performance PowerPC with Altivec Computer
- Availability:
- Available: Submit request for datasheets and more information.
Learn more: Rugged & COTS Technologies
Specifications
- Up to 1.33 GHz Freescale Dual-Core MPC8641 with AltiVec
- XMC and PMC Support
- Up to 4 PMCs support with Carrier Board
- High Speed Backplane with PCIe
- VME 2eSST Capability
- Air and Conduction-Cooled Versions
- Operating from -40�C to +85�C
Features
| CPU | Freescale MPC8640/8641 Single & Dual Core Power Architecture processor |
| CPU Clock | from 1GHz to 1.33GHz |
| DRAM | 1/2 GB soldered DDR2 memory with ECC |
| Compliance | VITA 1/1.5/1.7/31.1/38 |
| Connectivity | System Interconnect: 4x GbE , 1x PCI-Express x4, VME 2essT, Serial Lines |
| CPU L2 Cache | 1 MByte per Core |
| Flash | USB Flash Module support |
| NVRAM | 128 KB |
| Form Factor | 6U VME |
| Frontpanel | 2x GbE, 1x COM EIA-232, 1x USB 2.0 |
| Cooling | Available in Std Air and Conduction Cooling |
Datasheets
VM6250 Datasheet
[ vm6250-datasheet-08-14.pdf, 2.44 mb, Sep 23, 2014 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
VM6250 User's Guide [restrictions apply]
[ cadta65-vm6250-ug.pdf, 2.89 mb, Nov 27, 2013 ]
VM6250 U-Boot User Manual [restrictions apply]
ID 10047
[ sddtf36.pdf, 0.6 mb, Nov 27, 2013 ]
VM6250 PBIT User's Guide [restrictions apply]
ID 10077
[ sddtf35.pdf, 0.24 mb, Nov 27, 2013 ]
ALMA2f - FPGA Bridge Release Notes [restrictions apply]
ALMA2f-PCI 32-66 MHzVME 2eSST FPGA Bridge Release Notes
[ cadia01-0e-alma2f-rn.pdf, 0.21 mb, Nov 27, 2013 ]
VM6250/RC User's Guide Supplement [restrictions apply]
[ cadta75.pdf, 0.54 mb, Nov 27, 2013 ]
EZ1-VM6250-00-L Quick Start [restrictions apply]
[ sddtf51.pdf, 0.13 mb, Nov 27, 2013 ]
EZ1-VM6250 Getting Started [restrictions apply]
[ sddtf50.pdf, 0.33 mb, Nov 27, 2013 ]
EZ1-VM6250-00-L/V Quick Start [restrictions apply]
[ sddtf66.pdf, 0.13 mb, Nov 27, 2013 ]
VITA57 Development Kit User's Guide [restrictions apply]
[ sddtf79-3e-vita57-dvpt-kit-ug.pdf, 0.42 mb, Jun 20, 2014 ]
ALMA 2f-PCI 32-66 MHz [restrictions apply]
VME 2eSST FPGA Bridge User Manual
[ cidta00-alma-2f-.pdf, 0.74 mb, Nov 27, 2013 ]
Vx Works 6.8 ALMA VME Bus Driver [restrictions apply]
[ sddtg00-1e-vxworks68-69alma.pdf, 0.34 mb, Feb 23, 2015 ]
Warranty
10-Day Inspection Period: If the VM6250 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for VM6250 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
