- mITX-E38
- Manufacturer:
- Kontron
- Description:

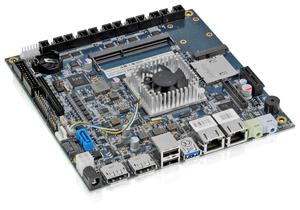

- Longterm available Mini-ITX board (Thin Mini-ITX size) with Intel Atom E38XX System on Chip (SoC)
- Availability:
- Available: Submit request for datasheets and more information.
The up to 7 years long-term available, new Mini-ITX embedded motherboard with Intel Atom processor E3800 SoC series is immediately deployable. Thanks to its ATX-compatible design, a large number of system components are already available, which reduces individual development work to a minimum. The embedded industrie design differentiates the board significantly from commercial Mini-ITX offerings which are less robust and only available in identical configuration for short periods. This also has an influence on the interfaces. The board supports not only 2x Display Port 1.1a but also 24bit LVDS on the most performant E3845 version. And, besides the innovative IoT connection via 3G/4G SIM card-slot, serial interfaces are available too. The mPCIe slot supports mSATA or mPCIe extensions. The operating system and application code can be stored on the mITX-E3845on the onBoard 16 GB-sized bootable NAND Flash memory (eMMC). Numerous standard interfaces, amongst others GbE, SATA and USB, are, of course, also integrated on this new Mini-ITX motherboard.
Specifications
- Intel Atom E38xx SoC (1, 2 or 4 cores), TDP: 5-10W
- SO-DIMM Socket DDR3L-1333 Memory (up to 8GB)
- Intel Gen7 Graphics, OpenGL 3.0, OpenCL 1.2, DX11, H.264, MPEG2, MCV, VC-1, VP8
- LVDS 24Bit dual channel and Display Port 1.1a
- 10/100/1000MBit RJ45 Ethernet LAN, SATA, mSATA or mPCIe in mPCIe connector
- SIMCARD Socket supporting 3G/4G modules in mPCIE connector
- Bootable onboard 16GB eMMC NAND Flash
- Long-term available up to 7 years
Features
| Form Factor | Thin Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supports: Intel Atom E38xx Series Intel Atom E3845 (4x1.91GHz, 10W) Intel Atom E3826 (2x1.46GHz, 7W) Intel Atom E3815 (1x1.46GHz, 5W) |
| Chipset | - |
| Main Memory | up to 8 GB SO-DIMM Socket DDR3L-1333/1066 (max. 1x 8GB) |
| Front Side Bus | - |
| Graphics Controller | Intel Gen7 Graphics OpenGL 3.0, OpenCL 1.2 |
| Graphics | 2x independent graphic outputs E3815/E3826 1x DP 1.1a, up to 2560x1600 E3845 1x DP 1.1a, up to 2560x1600 1x LVDS dual channel 24bit, up to 1920x1200 |
| Ethernet Controller | Intel Pearsonville i211AT |
| Ethernet | 2x Intel GB LAN |
| Hard Disk | 2x SATA (SATA 150/300) (1x mSATA shared with mPCIe) |
| Parallel Port | n/a |
| Flash Onboard | eMMC 16GB TLC Nand. E3845 only |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x1 |
| Mini-PCI | 1x mini-PCI Express x1 |
| USB | E3815/E3826: 3x USB 2.0 1x USB2.0/3.0 E3845: 6x USB 2.0 1x USB2.0/3.0 |
| IEEE 1394 Firewire | n/a |
| Serial | E3815: 2x RS232 UART 16550 E3826/E3845: 6x RS232 UART 16550 |
| Rear I/O | Ext. 12V 2x DP 2x USB 2.0 1x USB 3.0 2x LAN 1 x Audio Jack |
| Audio Controller | VIA VT1708S HD Analog 2x Audio Jack SPDIF Out, Line-Out |
| Keyboard | 6-pin PS/2 Keyboard/Mouse |
| Special Features | DAC up to 160 GPIO TPM (E3845 only) KT embedded feature port with ADC E3826 and E3845 only: 1x Micro SD Card Slot , SD Card 3.0 interface |
| BIOS | Phoenix |
| Power Management |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win7, WES7, WES8, Win8 (32 and 64bit) Linux WxWorks |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:2006+A1:2007 class B Generic Emission Standard RoHS IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 IEC 60068-2-27 60068-2-29 60068-2-64 |
Datasheets
Datasheet mITX-E38
[ mitx-e38.pdf, 1.21 mb, May 18, 2016 ]
Manuals
KTD-N0903 mITX-E38 Users Guide
Revision D 05-2016
[ ktd-n0903-d_mitx-e38-users-guide.pdf, 4.7 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| mITX-E3845 QC 810590-4500 | | Longterm available Mini-ITX board with Intel Atom E3845 4x1.91GHz, 10W; w. cooler | � |
| mITX-E3826 DC 810591-4500 | | Longterm available Mini-ITX board with Intel Atom E3826 2x1.46GHz, 7W; w. cooler | � |
| mITX-E3815 SC 810592-4500 | | Longterm available Mini-ITX board with Intel Atom E3815 1.46GHz, 5W; w. cooler | � |
Accessories
| DDR3-1600 SODIMM 1GB E2 1060-2526 |  | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 2GB E2 1060-2528 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 2GB 1060-2520 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3-1600 SODIMM 4GB E2 1060-2530 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 4GB 1060-2522 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| DDR3-1600 SODIMM 8GB E2 1060-2532 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3L-1600 SODIMM 8GB 1060-2524 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800 | � |
| Cable & Driver Kit - mITX-E38 1056-6781 | | 6x Cable COM 2.54mm 200mm, Cable Feature 44pol 1 to1 300mm, Bracket Cable 6-Pin to PS2-Kbd-Mse, Cable Front Panel Open-End, Cable+Bracket USB 10pole, Cable Power Out, Cable ATX Power, Cable LVDS Open-End, 2x Cable SATA 500mm, SW Man&Driver CD | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
