COMe Ref. Carrier FPGA - Kontron
Call for Price / Availability 888.528.9233
- Part:

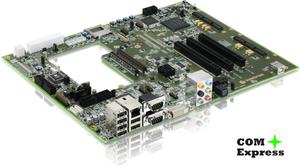

- COMe Ref. Carrier FPGA
- Manufacturer:
- Kontron
- Description:
- COM Express FPGA Baseboard for pin-out Type 1/2 or Type 10
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Developer Baseboard for FPGA Evaluation
- Altera FPGA Cyclone IV GX onBoard
Features
| Serial | 2x COM RS232 ports on DSUB9 with Type 10 COM only: 2x COM (TX/RX) to 10 pol mini connector |
| PCI Express / PCI support | 4x PCI Express x16 electrical x 1 Lane 0 connected to FPGA 1,2,3 optionaly connected to FPGA/PCI express connector |
| Ethernet | 1x 10/100/1000 MBit LAN; RJ45 connector |
| I/O Features | 1x I_C and 1x SM on feature connector, 8x GPIO on pin header, switch for selecting SD Card or GPIO, 1x SD Card socket |
| Parallel Port | 1x LPT |
| Hard Disk | 2x SerialATA up to 600 Mb/s |
| USB | 6x USB 2.0 1x USB client on mini USB connector |
| Additional | 4x digit POST code (LPC) |
| Audio Controller | Realtek ALC888 HD-Audio, optical S/PDIF IN/OUT, 7.1 audio jacks |
| BIOS | 2x BIOS socket LPC Firmware Hub SPI (external boot via SPI flash) |
| Form Factor | ATX Baseboard size |
| Temperature | Operation: 0� to 60�C Storage: -30� to 85�C |
| Chipset | FPGA Altera Cyclone IV GX 1x PCI Express Lane by 1; strap option Lane 1,2,3 on FPGA optional LVDS channel A to FPGA only integrated USB Blaster for programming by USB Interface DDR2 SODIMM Slot |
| Graphics | 1x LVDS (only single channel A) connected to a JILI connector Strap option: connect LVDS channel A to FPGA only for graphic features 1x SDVO |
| Dimensions (H x W x D) | 305 mm x 243 mm (12�� x 9,6��) |
| Supported Modules | COM Express� COM.0 Pin out Type 1, Type 2 & Type 10 compatible COM |
| Humidity | Operation: 10% to 90% Storage: 5% to 95% (non condensing) |
| Power Supply | ATX power supply 24 + 4 pin |
