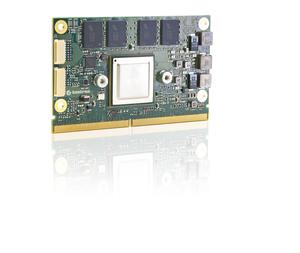

SMARC-sA3874i - Kontron
Call for Price / Availability 888.528.9233
- Part:
- SMARC-sA3874i
- Manufacturer:
- Kontron
- Description:
- SMARC Module based on
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- SMARC Module based on Cortex A8 technology
- Texas Instruments AM3874 up to 800MHz
- Very low power consumption
- Constructed to withstand harsh industrial environments
Features
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82mm x 50mm |
| CPU | Texas Instruments Sitara AM3874 Cortex A8 |
| Main Memory | up to 2GB DDR3 memory down |
| Graphics Controller | HD 1080p Decode/Encode 2D/3D acceleration |
| Ethernet Controller | integrated |
| Ethernet | 10/100/1000 MBit Ethernet |
| SATA | 1x SATA |
| Flash Onboard | Up to 32GB NAND FLASH build option |
| PCI Express / PCI support | 1x PCI Express x1 Lanes |
| Panel signal | Single Channel 18bit,24bit (18bit compatible) LVDS HDMI |
| USB | 2x USB 2.0, USB OTG |
| Serial | 2x RX/TX (Ser1/3) 2x UART (Ser0/2) |
| Interface | GPIO, 4x I_C, 4x I_S, 2x CAN, 2x SPI Camera input 10bit parallel interface |
| Operating System | WEC7, Linux, Android |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | Typ. 2 W |
| Temperature | Operation: -40� to 85�C, Storage: -40� to 85�C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
SMARC-sA3874i Datasheet (Release Candidate)�
[ datasheet_smarc-sa3874i.pdf, 1.01 mb, Sep 10, 2015 ]
Manuals
User's Guide
[ ulp-com-sa3874-user-guide-v1p0_draft_07.pdf, 2.41 mb, Nov 27, 2013 ]
Whitepapers
SMARC specification folder (Release Candidate)�
[ kontron_smarc_folder_feb2013.pdf, 1.83 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC,-sA3874i 0.8 1GB 51002-1000-08-1 |  | SMARC,-sA3874i based on Ti 3874 800MHz 1GB DRAM -40�C to +85�C | � |
| SMARC,-sA3874i 0.8 2GB 51002-2000-08-1 | | SMARC,-sA3874i based on Ti AM3874 800MHz 2GB DRAM -40�C to +85�C | � |
Accessories
| SMARC, Evaluation Carrier 51100-0000-00-0 | | Evaluation Carrier Board for SMARC, Computer-on-modules | � |
