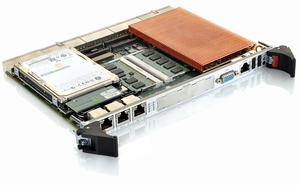

CP6004-SA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6004-SA
- Manufacturer:
- Kontron
- Description:
- CPCI/PICMG 2.16 Third Generation Intel Core, Processor based System/Peripheral CPU
- Availability:
- Available: Submit request for datasheets and more information.
The powerful processors enable virtualization and multithreading applications to run in full 64-bit mode using Enhanced Intel Virtualization, Intel HD Graphics, and Intel Turbo Boost Technology.
Designed for bandwidth-intensive applications, the CP6004-SA provides hot swap, IPMI (Intelligent Platform Management Interface), optional TPM (Trusted Platform Module 1.2) support, and meets the highest standards for the management and security of high-availability applications.
This makes this board exceptionally attractive to multiple markets, including highly sensitive, security-relevant telecom and datacom applications and, thanks to its robust construction, is also ideal for image-processing systems in medical and defense systems, among many other vertical segments.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC
Specifications
- 4HP, single slot processor board with passive cooling
- Scalable processor speed, 3rd Generation Intel Core, Processor based
- Up to 16GB DDR3 1600 MHz memory via two SO-DIMM sockets
- 5x GigEthernet Interfaces via PCIExpress
- Latest IO technology with SATA Gen 3, RAID, SSD
- XMC/PMC + onboard HDD + SSD Flash configuration possible
- Rear I/O supporting PICMG 2.16
Datasheets
CP6004-SA Data Sheet
[ datasheet_cp6004-sa.pdf, 1.34 mb, Oct 16, 2015 ]
Datasheet Wind River Linux BSP for B3C01 platform
[ dat_lin_bsp_wr_b3c01_01.pdf, 0.46 mb, Nov 27, 2013 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw69_bsp_b3c01_r11_01.pdf, 0.77 mb, Nov 27, 2013 ]
Datasheet for Linux BSP B3C01
[ dat_lin_bsp_b3c01_2.pdf, 0.86 mb, Nov 5, 2014 ]
Manuals
CP6004-SA/RA/RC / CP6004X-SA uEFI BIOS Manual [restrictions apply]
[ 1053-6161_30_sk-man-uefi-bios-cp6004-sa_-ra_-rc_cp6004x-sa.pdf, 0.28 mb, Nov 27, 2013 ]
CP6004-SA User Manual [restrictions apply]
[ 1052-8529_20_sk-man-cp6004-sa.pdf, 0.9 mb, Nov 27, 2013 ]
CP6004-SA Introduction Users Manual
Introduction manual of the CP6004-SA, 6U CompactPCI processor board, based on 3rd generation Intel Core, i7 and i5 processors.
[ 1052-8529_20_sk-man-cp6004-sa_introduction.pdf, 0.23 mb, Nov 27, 2013 ]
CP6004-SA/RA/RC / CP6004X-SA IPMI Firmware User Manual [restrictions apply]
[ 1053-0139_30_sk-man-cp6004-sa_-ra_-rc_cp6004x-sa-ipmi-fw.pdf, 0.23 mb, Nov 27, 2013 ]
Variants
| CP-RIO6-001 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 processor board | more |
| CP-RIO6-A / CP-RIO6-A216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |
| CP-RIO6-B / CP-RIO6-B216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 card | more |
| CP-RIO6-M |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |
Warranty
10-Day Inspection Period: If the CP6004-SA purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for CP6004-SA covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
