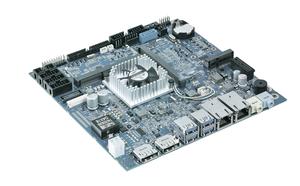

mITX-BW - Kontron
Call for Price / Availability 888.528.9233
- Part:
- mITX-BW
- Manufacturer:
- Kontron
- Description:
- long term availability mITX-BW with Intel Atom N3xxx system on chip (SOC)
- Availability:
- Available: Submit request for datasheets and more information.
The up to 7 years long-term availability, new Mini-ITX embedded motherboard with Intel Atom processor N3xxx SoC series is immediately deployable. With an ATX-compatible design, a large number of system components are already available, which reduces individual development work to a minimum. The embedded industry design differentiates the board significantly from commercial Mini-ITX offerings which are less robust and only available in identical configuration for short periods. This also has an influence on the interfaces. The board supports not only 2x Display Port 1.1a but also 24bit LVDS on the most performance Industrial Automation version. And, besides the innovative IoT connection via 3G/4G SIM card-slot, serial interfaces are available too. The mPCIe slot supports mSATA or mPCIe extensions. The operating system and application code can be stored on the mITX-N3xxx on the on-board 16 GB-sized bootable NAND Flash memory (eMMC). Numerous standard interfaces, amongst others GbE, SATA, CAN, RS485 and USB, are also integrated on this new Mini-ITX motherboard.
Specifications
- Intel Atom N3xxx SoC (2 or 4 cores), TDP: 4-12W
- SO-DIMM Socket DDR3L-1600 Memory (up to 8GB)
- Intel Gen7 Graphics, OpenGL 4.2, OpenCL 1.2, DX12, H.265/264, MPEG2, MCV, VC-1, VP8
- LVDS 24Bit dual channel and Display Port 1.1a
- 10/100/1000MBit RJ45 Ethernet LAN, GPIO
- 2 SATA 3.0 (up to 6GB/s), 1 SATA multiplex with mSATA/mPCIe in mPCIe connector
- SIMCARD Socket supporting 3G/4G modules in mPCIe connector
- 4 USB2.0/3.0 with 3 additional internal USB 2.0 interfaces via mPCIE and front panel connector
- Additional CAN Bus and RS485 interface
- Bootable onboard 16GB eMMC NAND Flash
- Long-term available up to 7 years
Datasheets
Datasheet mITX-BW
[ mitx-bw.pdf, 1.38 mb, May 18, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
