CP6108X - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6108X
- Manufacturer:
- Kontron
- Description:
- GPU-GPGPU Carrier for 6U high-speed CompactPCI
- Availability:
- Available: Submit request for datasheets and more information.
The CP6108X is a 6U high-speed CompactPCI carrier for an MXM3.0 GPU module and has been designed to integrate leading-edge, parallel processing capabilities into CompactPCI systems. It can accommodate one MXM3.0 module with an AMD Radeon, GPU designed for the embedded industry or any other customer-sourced MXM3.0 type A or type B module.
The symbiosis for most demanding missions
The CP6108X combines enormous price-performance and performance-per-watt advantages of GPU and GPGPU computing with the robustness, longevity, and modularity of CompactPCI systems. This is the perfect symbiosis not only for some of the most demanding graphics-intensive applications in modular or rugged systems, but also for enhanced workload and massive parallel computing in harsh environments. Typical sample applications in avionics are geographic information systems, 360-degree situational awareness, and diminished vision enhancement. Typical public- and government-related tasks are radar, sonar, or video surveillance and FFT calculations.
Integrated package with AMD Radeon, E8860 as reference
The CP6108X is also available with the AMD Radeon, E8860 GPU module mounted, as integrated GPU card (CP6-GPU8860). It provides the optimal performance-per-watt profile for embedded applications that require outstanding multi-display experiences and massive parallel computing but have exacting power efficiency and heat dissipation requirements. Kontron made this combination available as reference package which integrates a passive cooling solution in only 4HP height, supporting a thermal design power of 37 watts.
Specifications
- Parallel computing in harsh environments
- MXM3.0 Type A/B modules
- High bandwidth via PCI-Express, PICMG2.20-based
- 2x DVI-D and 4x DisplayPorts
- Reference package with AMD E8860 and 4HP cooling
Datasheets
CP6108X Datasheet
GPU-GPGPU Carrier for 6U high-speed CompactPCI
[ datasheet_cp6108x.pdf, 1.21 mb, Jun 8, 2015 ]
Manuals
User Guide CP6108X [restrictions apply]
[ 1056-9946_10_sk-man-cp6108x_cp6-gpu8860.pdf, 2.53 mb, Jun 8, 2015 ]
Accessories

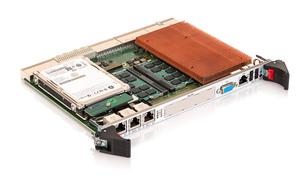

| CP6004X-SA |  | CPCI/PICMG 2.16 Third Generation Intel Core, Processor based System/Peripheral CPU with 10G Ethernet & PCI Express backplane support | more |

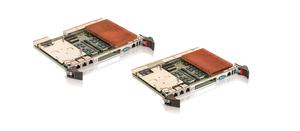

| CP6005-SA |  | CPCI/PICMG 2.16 4th Generation Intel Core, Processor based System/Peripheral CPU | more |
| CP6105X |  | XMC-PMC Carrier for 6U high-speed CompactPCI | more |
| CP-RAPID3 CP-RAPID3 |  | High Speed 6U CompactPCI in a Silent Rack | more |
| CP6-GPU8860 |  | GPU-GPGPU Board for 6U CompactPCI /PCI-Express | more |
