COMe Ref.Carrier-i T10 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe Ref.Carrier-i T10
- Manufacturer:
- Kontron
- Description:
- COM Express Reference Carrier Type 10 for industrial temperature
- Availability:
- Available: Submit request for datasheets and more information.
This COM Express Reference Carrier board is specifically designed for environmental testing where the solution is subjected to the extended temperature range (E2) -40�C to +85�C. It is especially for applications based on Kontron COMe-mTTi10 Computer-on-Modules.
The Reference Carrier board also offers three different display interfaces for high graphic scalability: LVDS, Display Port and DVI.
Specifications
- COM Express Rev. 2.0, Pin-out Type 10
- nano-ITX Form Factor (120mm x 120mm)
- SDVO-DVI, DP++ and LVDS
- Industrial Temperature grade
Features
| Compliance | COM Express Rev. 2.0 Pin-out Type 10 |
| Dimensions (H x W x D) | 120 x 120 mm (nano-ITX) |
| Supported Modules | COM Express mini with pin-out Type 10 or 1 |
| Graphics | 1x LVDS/JILI FFC40 connector 1x DVI-D (requires SDVO Support from Module) 1x DP++ |
| Hard Disk | 2x SATA 1x micro-SD |
| USB | 2x USB 2.0 2x USB 2.0 on pin-header 1x USB client |
| PCI Express / PCI support | 2x miniPCIe (with USB and SIM card support) |
| Audio | Conexant AD1882AJCIZ S/PDIF out, TOSLINK Front Panel Audio connector |
| Ethernet | 1x 10/100/1000 MBit LAN RJ45 connector |
| Serial | 1x UART on pin-header (from module) 1x CAN (requires CAN support from module) |
| Special Features | 1x PWM Fan from COM SPI Boot Power Connector for external HDD |
| Common Features | Feature Connector Diagnostic LED PWR/RST Buttons |
| Options | - |
| Power Supply | Single Power supply 5.5V - 20V Onboard ATX control including Standby 7.2V Smart Battery support |
| Temperature | Operation: -40� to 85�C Storage: -40� to 85�C |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
Datasheet COM Express Reference Carrier-i Type 10 (Release Candidate)�
[ datasheet_com-express-reference-carrier-i-type-10.pdf, 0.35 mb, Nov 27, 2013 ]
Manuals
User's Guide
[ adapm110.pdf, 1.32 mb, Nov 27, 2013 ]
Whitepapers
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com.0-rev.-2.0_en.pdf, 2.21 mb, Nov 27, 2013 ]
Variants
| COMe Ref.Carrier-i T10 34104-0000-00-0 |  | COM Express Reference Carrier Type 10 for industrial temperature | � |

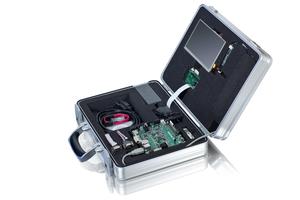

| COMe Starterkit Ref. T10 34104-0000-00-S |  | Starterkit with COMe Reference Carrier-i T10 | more |
