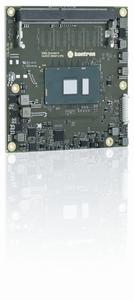

COMe-cSL6 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cSL6
- Manufacturer:
- Kontron
- Description:
- COM Express compact pin-out type 6 Computer-on-Module with 6th Generation Intel Core, Processors
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- C OM Express compact pin-out type 6 Computer-on-Module with
- 6th Generation Intel Core, Processors
- up to 24 GByte DDR4 memory (8 GByte DDR4 memory down)
- up to 10 lanes PCIe 3.0
- 4x USB 3.0, 2x SATA 6G
Features
| CPU | 6th Generation Intel Core, i7 i5,i3 Processors i7-6600U i5-6300U i3-6100U |
| Main Memory | Up to 8GB DDR4 memory down & up to 16GB DDR4 SODIMM |
| Chipset | Integrated in CPU |
| Graphics | Intel HD Graphics 520 integrated |
| I/Os | 5x PCIE3.0 (5 controllers, 5 x1, 1 x4 + 1 x1) Option: 6 Lanes if no LAN 4x PCIE3.0 on PEG Lanes 0-3 (1 Controller, 1 x4 or 1 x2 or 1 x1) 2x SATA 6G 4x USB 3.0/2.0, + 4x USB 2.0 1x 1000BASE-T |
| Temperature | Temperature 0-60�C, optional industrial grade -40 to +85 �C |
| Operating System | WES7, WES8, W7, W8, Linux, VxWorks |
| Power Supply | VCC: 8.5 to 20V |
| Special Features | TPM 2.0, INFINEON SLB9665XQ2.0 |
| BIOS | AMI UEFI, vPRO optional |
Datasheets
Datasheet COMe cSL6
[ datasheet_come-csl6.pdf, 1.2 mb, Jan 13, 2016 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
