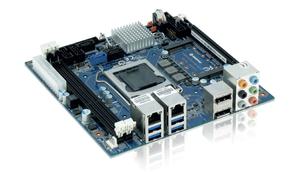

KTH81/mITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTH81/mITX
- Manufacturer:
- Kontron
- Description:
- Embedded Mini-ITX Motherboard with IntelH81Chipset and 4th Generation Intel i7/i5/i3Dual and Quad Core CPUs
- Availability:
- Available: Submit request for datasheets and more information.
Embedded Mini-ITX Motherboard with IntelH81 Chipset and 4th Generation Intel i7/i5/i3 Dual and Quad Core CPUs
�
Specifications
- 4th Generation Intel 22nm Dual and Quad Core i7, i5, i3,
- Pentium & Celeron CPUs with Intel H81 Lynx Point PCH
- perfect price-performance ratio
- Long term available Embedded mITX motherboard
- High performance CPU, graphics, and media performance supporting
- 2 independent displays pipes
- Graphics APIs DirectX 11.1, OpenGL 4.x, OpenCL 1.2
- 2x Display Port for fl exible, high resolution display drive
- 2x DDR3L/DDR3 DIMM sockets supporting up to 16GB DDR3 Memory
Features
| Form Factor | Mni-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supports: 4th Generation Intel 22nm Quad Core i7, i5, i3,Pentium & Celeron CPU Intel Core i7-4770S GT2 3.1Ghz, 65W Intel Core i5-4570S GT2 2.9Ghz, 65W Intel Core i3-4330 GT2 3.5GHz, 54W Intel Pentium-3420 GT1 3.2GHz, 54W Intel Celeron-G1820TE GT1 2.2GHz, 35W |
| Chipset | Intel H81 |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | Up to 20 GB/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 4600 integrated GT1 or GT2 depending on CPU type |
| Graphics | 2x Display Port (1x PCIe x16) |
| Ethernet Controller | 1x Intel Clarkville i218V 1x Intel Pearsonville i218AT |
| Ethernet | 2x Intel GB LAN |
| Hard Disk | 3 x SATA (2x SATA 150/300, 1x SATA 600) 1x mSATA (w. USB, LPC) |
| Parallel Port | n/a |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x16 |
| Mini-PCI | 1x mini-PCI Express (w. USB) |
| USB | 2x USB 3.0/2.0 8x USB 2.0 |
| IEEE 1394 Firewire | n/a |
| Serial | 2x RS232 |
| Rear I/O | 2x USB 3.0/2.0 2x USB 2.0 2x Display port 2x RJ45 LAN 2x3 mini Audio Jack tower |
| Audio Controller | VT1708S HD Audio 7.1 channel surround sound |
| Keyboard | n/a |
| Special Features | DAC up to 160 GPIO TPM KT embedded feature port with ADC Intel AES security ATX Power supply only |
| BIOS | Phoenix |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win7, WES7 32/64bit, Win8, WES8 Linux VxWorks |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 IEC 60068-2-27 IEC 60068-2-29 IEC 60068-2-64 ROHS |
Datasheets
Datasheet KTH81/mITX
[ kth81-mitx.pdf, 0.96 mb, May 18, 2016 ]
Manuals
KTD-N0882 KTQ87 Users Guide
[ ktd-n0882-j_ktq87---kth81-users-guide.pdf, 4.73 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTH81/mITX 810581-4500 | | Embedded Mini-ITX Motherboard with IntelH81Chipset and 4th Generation Intel i7/i5/i3Dual and Quad Core CPUs | more |
| Intel Core i3-4330 1055-5247 |  | Intel Core i3-4330 GT2 3.5GHz, 3C 4MB, 54W, LGA1150 | � |
| Intel Core i5-4570S 1054-9757 | | Intel Core i5-4570S, 3.60 GHz, quad Core, 6MB Cache, 65W, FCLGA1150, Embedded | � |
| Intel Core i7-4770S 1054-9752 | | Intel Core i7-4770S, 3.90 GHz, quad Core, 8MB Cache, 65W, FCLGA1150, Embedded | � |
| Intel Celeron-1820 1056-0044 | | Intel Celeron-1820 GT1 TBD 2C 2M LGA1150 35W | � |
| Intel Pentium-3420 1055-5249 | | Intel Pentium-3420 GT1 3.2GHz, 2C 3MB, 54W, LGA1150 | � |
Accessories
| DDR3-1333 DIMM 1GB ECC 1060-2476 | | DDR3, 1GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 2GB 1060-2498 | | DDR3, 2GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 2GB 1060-2492 | | DDR3, 2GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1600 DIMM 4GB 1060-2500 | | DDR3, 4GB, 240P, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1600 DIMM 8GB 1060-2488 | | DDR3, 8GB, 240p, 1600MHZ, PC3-12800 DIMM | � |
| DDR3-1333 DIMM 4GB 1060-2494 | | DDR3, 4GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| DDR3-1333 DIMM 8GB 1060-2496 | | DDR3, 8GB, 240P, 1333MHZ, PC3-10600 DIMM | � |
| Active Cooler Intel 1046-6305 | | Active Cooler Intel, H2 LGA1155, 62mm | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| Accessory kit for KTQ87, KTH81 826602 | | 2x COM cable (2.54mm, 100mm), 1x Feature 44pol 1 to 1 cable (300mm), 1x Front Panel Open-End cable, 5x SATA cable (500mm), 2x Cable+Bracket (USB, 10poled), SW Man&Driver CD | � |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
