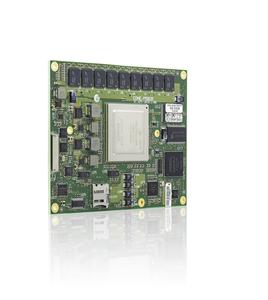

COMe-bP5020 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-bP5020
- Manufacturer:
- Kontron
- Description:
- Freescale, QorIQ, P5020 Power Architecture COM with 10Gbit Ethernet and flexible interface support.
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Up to 2.0 GHz Dual Core e5500 Power Architecture
- Flexible interface support by 18x SerDes lanes (PCIe, sRIO, GbE, XAUI, SATA)
- High-performance datapath acceleration and network processing
- COM Express basic compliant (95 x 125mm)
- Energy, Communication, Transportation, Defense
Features
| CPU | Freescale, QorIQ, P5020 (P5010) e5500 Power Architecture |
| Bus type | Processor Local Bus |
| Cache | 32 KB L1 instruction cache and 32 KB L1 data cache for each core 512 KB L2 cache with ECC 2MB L3 cache shared |
| Compliance | Com Express basic |
| CPU Clock | 2x 2.0 GHz (P5010 2x 1.6 GHz) |
| Dimensions (H x W x D) | 95x125 mm |
| Ethernet | 1x 10/100/1000 Base-T 2x IEEE 1588 control see SERDES |
| Flash Disk | 64kbit I_C EEPROM up to 2GB NAND Flash + 2MB NOR Flash 2nd 2MB SPI NOR Flash for boot recovery purposes 512kB MRAM |
| Hard Disk | MicroSD card slot/ bootable 2x SATA multiplexed with SERDES |
| Humidity rel. | 93% relative Humidity at 40 �C, non-condensing (acc. to IEC 60068-2-78) |
| Interface | 12x GPIO 1x I_C 1x SDHC 2x MDIO (IEEE 802.3 clause 22) SPI 5x IRQ JTAG debug Aurora debug |
| Main Memory | up to 8GB DDR3-1333 MHz ECC |
| Operating System | Linux; Wind River VxWorks 6.9.2 |
| PCI Express / PCI support | see SERDES |
| Power Consumption | est. 30W/12V |
| Real Time Clock | - |
| Serial | 4x UART (2x FourWire/ 4x TX/RX) Serial Rapid I/O see SERDES |
| Temperature | 0 �C to 60 �C |
| USB | 5x USB 2.0 (one channel device capable) |
| USB Boot | tbd |
| Watchdog | Yes |
| SERDES | 18x SERDES lanes configurable; pre-selected standard configurations: 2x PCIe x4 + 4x 1 GbE SGMII + 1x SATA 2x PCIe x4 + 4x 1 GbE SGMII + 1x XAUI 2x PCIe x4 + 1x XAUI + 1x SATA 2x sRIO x4 + 4x 1 GbE SGMII + 1x SATA |
Datasheets
QorIQ Computer-on-Modules Portfolio (Release Candidate)�
[ datasheet-com-express-qoriq_web.pdf, 2.26 mb, Nov 7, 2014 ]
COME-QEC-1 Quick Start Guide
[ 1054-1776_01_sk-man-come-qec-1.pdf, 3.43 mb, Nov 27, 2013 ]
Manuals
User's Guide
[ come-bp5020-user-guide.-v1.0.pdf, 5.58 mb, Nov 27, 2013 ]
COMe-bP5020 Introduction Manual
[ 1053-4773_10_sk-man-come-bp5020_introduction.pdf, 1.58 mb, Nov 27, 2013 ]
Variants
| COMe-bP5020 2x1.5 4GB/1GB 68001-4010-15-2 |  | COM Express basic Computer-on-Module with Freescale, QorIQ, P5020 Dual Core 2x1.5GHz, 4GB DDR3-1333 ECC memory down, 1GB onboard NAND Flash | � |
| COMe-bP5020 2x1.5 8GB/1GB 68001-8010-15-2 | | COM Express basic Computer-on-Module with Freescale,QorIQ, P5020 Dual Core 2x1.5GHz, 8GB DDR3-1333 ECC memory down, 1GB onboard NAND Flash. | � |
