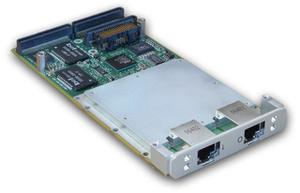

XMC-ETH2 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- XMC-ETH2
- Manufacturer:
- Kontron
- Description:
- PMC/XMC Gigabit Ethernet Mezzanine Card
- Availability:
- Available: Submit request for datasheets and more information.
VPX or CompactPCI Single-Board Computer in the market.
XMC-ETH2 provides two gigabit copper links selectable in
front or rear. When power on the P5 connector is detected,
the bus interface is selected to be a PCI Express interface
with four lines. Otherwise, it switches to PCI 33 MHz or 66
MHz, 32 bit on PMC connectors. The PMC PCI interface is
compatible with 5V and 3.3V V(I/O) voltages
Specifications
- x4 PCI Express, XMC and PCI PMC interface to Host
- Standard Air Cooled version (0 to 55�C)
- Rugged Conduction Cooled version (-40 to 85�C)
Features
| Controller | Intel 82571 |
| Data Rate | 10 Base-T, 100Base-Tx, 1000Base-T |
| Function | 1 or 2 independent Gigabit, Ethernet channels |
| Frontpanel | 2x RJ45 |
| Bus type | 32 bit/33MHz or 66MHz PCI on P1/P2, x4 PCIe on P5 |
| Rear I/O | 1 or 2 channels can be routed to the back, via P4 |
| PMC | Compatible with 5V and 3.3V I/O voltages |
Datasheets
XMC-ETH2 Data Sheet
[ datasheet_xmc-eth2.pdf, 0.7 mb, Nov 27, 2013 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
XMC-ETH2 User's Guide [restrictions apply]
[ cadta69.pdf, 0.85 mb, Nov 27, 2013 ]
