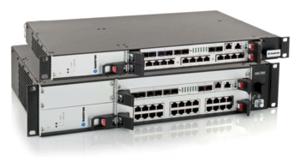

CP6930-RM - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6930-RM
- Manufacturer:
- Kontron
- Description:
- Fully managed rugged 10Gigabit Ethernet Rack Mount Switch
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Leading edge Ethernet switching technology for harsh environments
- Fully managed non blocking switching & routing, IPv6 compliant
- 6x 10 Gigabit Ethernet SFP+, 2x 1GbE SFP, 12x (24x) 10/100/1000Base-T
- Rugged & modular concept for easy maintenance
- SNMP, IPMI, Command Line, Web Interface
- Operating Temperature Range 0..55�C, optionally extended
- Comprehensive firmware package
- Hotswap & Redundancy possible
Features
| Additional | Various configurations available |
| Connection | 6x SFP+, 2x SFP, 12x (24x) RJ45 |
| Dimensions (H x W x D) | 19 Inch, 1U, 275 mm deep |
| Ethernet/Bridging Protocols | Include VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP |
| Function | Managed Router / Switch |
| Operation Temperature | 0 - 55�C, extended versions on request |
| Ports | 12x (24x) GbE, 6x SFP+, 2x SFP |
| Power Consumption | max. 60W, 110/230 VAC |
| Routing Protocols | Include OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP |
Datasheets
CP6930-RM Datasheet
[ datasheet_cp6930-rm.pdf, 1.07 mb, Dec 3, 2015 ]
Manuals
CP6930- RM User Manual [restrictions apply]
[ cp6930-rm-user-guide-v1.0.pdf, 2.44 mb, Nov 27, 2013 ]
Quick Start - Fastpath Configuration Guide [restrictions apply]
The Fastpath quick start guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1.1.pdf-2, 4.74 mb, Nov 27, 2013 ]
CP6930 Command Line Interface Reference Manual [restrictions apply]
[ cp6930_cli_reference_manual_v1_03.pdf, 23.04 mb, Nov 27, 2013 ]
Warranty
10-Day Inspection Period: If the CP6930-RM purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for CP6930-RM covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
