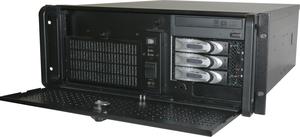

VRack 4U KTQ45 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VRack 4U KTQ45
- Manufacturer:
- Kontron
- Description:
- Availability:
- Available: Submit request for datasheets and more information.
With a front-side bus of up to 1.333 MHz and up to 8 GByte DDR3 SDRAM, the Kontron VRack 4U KTQ45 accelerates computing intensive embedded applications such as test and measurement, image processing, process control and video surveillance.
Specifications
- Supporting Quad Core CPUs
- Up to 8 GB DDR 3
- Vpro(AMT)
- 400 W AC PSU 80+ or 650W AC PSU (80+)
- Raid 5 or 0/1 subsystem KISS Stor ( 3/2 Hot Swap SATA Harddrives)
- Disk Array DAxxx
- 2 x USB 2.0 to the front
Features
| CPU | Core 2 Duo and Quad Core |
| Chipset | Intel Q45 + ICH10DO Embedded Chipset |
| Approvals | CE |
| Connectivity | Front: 2* USB 2.0, REAR: 2* COM,VGA,Line in , Line out,8* USB 2.0, PS/2 M+K,2* LAN 10/100/1000 |
| Cooling | 2 x 92mm fans |
| Dimensions (H x W x D) | mm: 177 x 482.6 x 508 (inches: 7 x 19 x 20) |
| Drives | 1*3,5 bay , 3*5,25 bay, 2* 3,5 internal |
| Free Slots | 4* PCI 32 bit, 1 x PCI_e x 16, 1 x PCI_e x 4 |
| Management | AMT 5.0 |
| Mounting | Rack Mount, Desktop |
| Main Memory | Up to 8 GB DDR 3 |
| Operation Temperature | 0C to 45 C |
| Verified OS | Windows XP, Windows 7 (32 bit or 64 bit) |
| Weight | ~ 18 kg |
Datasheets
Datasheet VRack 4U KTQ45
[ datasheet_vrack-4u-ktq45_web.pdf, 2.12 mb, Nov 27, 2013 ]
Manuals
User Manual VRack 4U
[ vrack_4u_user_guide_v0_99_prelim_en.pdf, 1.65 mb, Nov 27, 2013 ]
Warranty
10-Day Inspection Period: If the VRack 4U KTQ45 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for VRack 4U KTQ45 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
