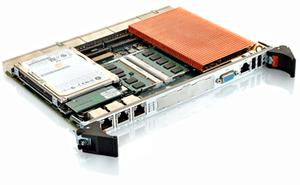

CP6003-SA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6003-SA
- Manufacturer:
- Kontron
- Description:
- CPCI/PICMG 2.16 Intel Core, i7 / i5 Second Generation System/Peripheral CPU
- Availability:
- Available: Submit request for datasheets and more information.
The power of up to four cores enables virtualization and multithreading applications to run in full 64-bit mode using Enhanced Intel Virtualization, Intel HD Graphics, and Intel Turbo Boost Technology.
Designed for bandwidth-intensive applications, the CP6003-SA provides hot swap, IPMI (Intelligent Platform Management Interface), optional TPM (Trusted Platform Module 1.2) support, and meets the highest standards for the management and security of high-availability applications.
This makes this board exceptionally attractive to multiple markets, including highly sensitive, security-relevant telecom and datacom applications and, thanks to its robust construction, is also ideal for image-processing systems in medical and defense systems, among many other vertical segments.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC
Specifications
- 4HP, single slot quad or dual core CPU with passive cooling
- Scalable processor speed, Intel Core, i7 / i5 up to 2.5 GHz
- Up to 16GB DDR3 1333 MHz memory with ECC via two SO-DIMM sockets
- 5x GigEthernet Interfaces via PCIExpress
- Latest IO technology with SATA Gen 3, RAID, SSD
- XMC/PMC + onboard HDD + SSD Flash configuration possible
- Rear I/O supporting PICMG 2.16
Features
| CPU | Intel Core, i7 / i5 Second Generation |
| DRAM | up to 16GByte with ECC, DDR3 SO-DIMM |
| Chipset | Intel QM67 platform controller hub |
| 4HP Version | VGA, COM, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC cutout |
| Additional | Watchdog, Hardware Monitor, Trusted Platform Module 1.2 (optional) |
| Cache | up to 6MB last level cache |
| DRAM speed | up to 1333 MHz |
| Ethernet | 5x Gigabit, 3x to front, 2x to rear, PICMG 2.16 compliant |
| Flash Disk | SSD Flash Module up to 32GB or 2.5 inch SSD |
| Frontpanel | VGA (CRT), COM1, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC |
| Graphics | QM67 internal, independant screens, VGA, DVI, HDMI |
| IPMI | Yes (IPMI V1.5) |
| PMC | 1x slot XMC PCIe x8 or 1x slot PMC 64-bit/100 MHz |
| Power Consumption | Quad Core 2.1GHz max. 60W; Dual Core LV 2.2 GHz max 40W |
| Rear I/O | Yes, VGA, 2x DVI/HDMI, 4xUSB, HDAudio, 2xCOM, PS/2, 2xEth, 4xSATA, 2xFan, Battery In |
| SATA | 4x SATA II, RAID 0/1/5/10 capabilities; onboard SATA III disk option, onboard SATA III connector |
| System peripheral | System / Stand alone |
| Temperature/Humidity | 0-60�C, 93% rel. humidity |
| USB | 6x USB 2.0 max. |
Datasheets
CP6003-SA Data Sheet
[ datasheet_cp6003_sa.pdf, 1.03 mb, Nov 30, 2015 ]
Datasheet of the IPMI Firmware of CP6003
[ dat_fw_ipmi_b3c0.pdf, 0.09 mb, Nov 27, 2013 ]
Datasheet EFIBIOS B3C01 for CP6003
[ dat_efibios_b3c01.pdf, 0.54 mb, Nov 27, 2013 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw69_bsp_b3c01_r11_01.pdf, 0.77 mb, Nov 27, 2013 ]
Datasheet for Linux BSP B3C01
[ dat_lin_bsp_b3c01_2.pdf, 0.86 mb, Nov 5, 2014 ]
Manuals
CP6003-SA User Manual [restrictions apply]
[ 1044-9757_20_sk-man-cp6003-sa.pdf, 0.88 mb, Nov 27, 2013 ]
CP6003-SA Introduction Manual
[ 1044-9757_20_sk-man-cp6003-sa_introduction.pdf, 0.22 mb, Nov 27, 2013 ]
CP6003-SA IPMI Manual
[ 1045-5656_20_sk-man-cp6003-sa_ra_rc-ipmi-fw.pdf, 0.23 mb, Nov 27, 2013 ]
CP6003-SA uEFI BIOS Manual
[ 1045-9149_20_sk-man-uefi-bios-cp6003-sa_ra_rc.pdf, 0.23 mb, Nov 27, 2013 ]
Variants
| CP-RIO6-001 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 processor board | more |
| CP-RIO6-A / CP-RIO6-A216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |
| CP-RIO6-B / CP-RIO6-B216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 card | more |
| CP-RIO6-M |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |
