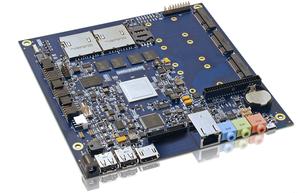

KTT30/mITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTT30/mITX
- Manufacturer:
- Kontron
- Description:
- KTT30/mITX w. Nvidia Tegra 3, 2GB DDR3, 16GB NAND Flash, Linux BSP / OS loaded
- Availability:
- Available: Submit request for datasheets and more information.
Thanks to its standardized Mini-ITX form factor, the Kontron KTT30/mITX paves an efficient path for OEMs to integrate innovative ARM technology straight off-the-shelf and into their embedded applications. Not only are a wide range of Mini-ITX peripherals already available, but OEMs also benefit from Kontron's comprehensive customization services and extensive software support for Android and Linux which serve to minimize development time and costs. Besides the numerous USB and RS232 interfaces, several audio and video interfaces as well as miniPCIe extension slots, the Kontron KTT30/mITX offers a selection of interfaces to suit nearly every possible application. The extremely low-power consumption facilitates small passive cooling solutions which additionally reduce the bill of materials and development effort while simplifying implementation. Due to the board's low height of just 15.2 millimeters, extremely flat systems can be built and mounted directly onto the back of monitor and video panels, i.e. for HMIs or cost-efficient digital signage players. In addition, the board supports Full-HD (1080 p) video for both playback and recording purposes - making it an ideal platform for video conferencing systems or security applications. As with all Kontron embedded motherboards, the new Kontron KTT30/mITX comes with a long-term availability of at least seven years as well as its outstanding and durable stability and reliability due to its high-quality board layout and selected top-grade components.
The Kontron KTT30/mITX is based on the NVIDIA Tegra 3 processor with four ARM Cortex-A9 CPU cores each with up to 900 MHz. An additional core with up to 500 MHz clock speed reduces power consumption to less than 1 watt in phases, when just media playback or background services are running. With its integrated 12-core NVIDIA GeForce GPU for low-power applications, life-like 3D graphics with dynamic lighting are possible at screen resolutions of up to 2048 x 1536 pixels. It also offers HDMI 1.4a and 24 bit LVDS video interfaces. Thanks to the integrated video encoder and decoder, as well as high resolution video playback it offers real time video compression, which can, for example, be supplied via the CSI/DSI camera port. Peripheral devices can be connected via three USB 2.0 ports and two RS232 ports. Operating system and application data can be hosted on the bootable eMMC. Two PCIe slots, one of which can also be used as an mSATA port, are available for application-specific extensions. An RJ45 Gigabit Ethernet port and analog audio-I/Os add the final touches to the feature set.
Specifications
- ARM Cortex-A9 Quad Core 900MHz Processor with NEON Technology
- Integrated Chipset
- DRAM Up to 2 GB DDR3L memory down
- Graphics Ultra low power NVIDIA GeForce GPU with enhanced 3D capabilities; 1080p H264 MPEG-4 encoding/decoding Video Processor
- HDMI 1.4a (up to 1920x1080 pixel), and 24 bit LVDS (up to 2048x1536 pixel @ 18bpp), support for 2 independent displays
- 1x mPCIe, 1x mPCIe/mSATA, 1x mPCIe for 3G (oboard SIM socket) 2x SD card
- Target power consumption
- USB 3x port USB 2.0 (2x Type A and 1x Micro (supports also device mode)
- Serial port 2x RS232 (1x 8wire RS232 port and 1x port which can be used either as cc-talk or 4wire RS232)
- Ethernet 1x 10/100/1000 Ethernet Controller
- CSI/DSI/12-bit par. Camara input, Bootable eMMC
- Mass Storage 2x SD Card, 1x eMMC ( Bootable), 1x SATA 2.0
- Sound Line in/out/mic, S/PDIF in/out (electrical)
- Operating temp. 0�C to 60�C
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supporting: NVIDIA Tegra 3ybr> ARM Cortex-A9 Quad Core 900MHz |
| Chipset | - |
| Main Memory | Up to 2 GB DDR3L memory down |
| Front Side Bus | - |
| Graphics Controller | NVIDIA GeForce GPU Enhanced 3D capabilities 1080p H264 MPEG-4 encoding/decoding Video Processor support 2 independent displays |
| Graphics | 1x HDMI 1.4a (up to 1920x1080 pixel) 1x LVDS 24bit (up to 2048x1536 pixel @ 18bpp)) DSI (up to 1440x900 @ 18bpp) |
| Ethernet Controller | Intel 82574L |
| Ethernet | 1x 10/100/1000 Mbit LAN |
| Hard Disk | 1x SATA (SATA 150/300) 1x mSATA shared with Mini-PCI Express |
| Parallel Port | n/a |
| Flash Onboard | 1x eMMC (Bootable) |
| PCI | n/a |
| PCI Express / PCI support | - |
| Mini-PCI | 1x Mini-PCI Express x1 1x Mini-PCI Express x1 shared with mSATA |
| USB | 3x USB 2.0 (2x Type A and 1x Micro (supports also one port USB client mode)) |
| IEEE 1394 Firewire | n/a |
| Serial | 2x RS232 |
| Rear I/O | 2x USB 2.0 Type A 1x USB 2.0 micro (USB client) 1x HDMI 1x Audio (LineIn, LineOut, Mic) 1x Power external |
| Audio Controller | Two integrated audio controllers (PCM and Inter-IC Sound, called IIS or I2S) |
| Keyboard | via GPIO or USB |
| Special Features | Up to 18 GPIOs on a Feature connector USB modem card interface with SIM card socket One SPITM interface (3.3V) on a pin header Serial Atmel touch screen interface (I2CTM) CSI/DSI/12-bit par. Camera input 2x SDcard socket |
| BIOS | Bootloader on SPI Flash |
| Power Management |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | WEC7 Linux Android |
| Compliance | EN 61000-4-2:2000 ESD Immunity �_ EN55022:1998 class B Generic Emission Standard |
Datasheets
Datasheet KTT30/mITX
Datasheet KTT30/mITX
[ datasheet_ktt30-mitx.pdf, 1.14 mb, Jan 12, 2016 ]
Manuals
KTD-N0857 KTT30 Users Guide
[ ktd-n0857-b-ktt30-users-guide.pdf, 1.56 mb, Jan 10, 2014 ]
KTT30/mITX Tips & Hints
[ ktt30-mitx_tipsandhints.pdf, 0.03 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTT30/mITX 810500-4500 | | KTT30/mITX w. Nvidia Tegra 3, 2GB DDR3, 16GB NAND Flash, Linux BSP / OS loaded | more |
| KTT30/mITX Basic 810501-4500 |  | KTT30/mITX Basic, w. Nvidia Tegra 3, 1GB DDR3, no NAND Flash, Linux BSP / OS loaded | � |
Accessories
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| LVDS Open-End Cable 821515 | | LVDS Open-End Cable 540mm | more |
| LCD LVDS Cable for JAE FI-S20 1027-2631 | | LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21) | � |
| LVDS 1:1 Cable 1027-3591 | | LVDS 1:1 cable, 2x 40 pin connector, 405mm | � |
| AUO G121SN01 Cable 821518 | | Cable for AUO G121SN01 | more |
| LCD Cable for LG.Philips LM150X08 821520 | | LCD cable for LG.Philips LM150X08 | � |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
