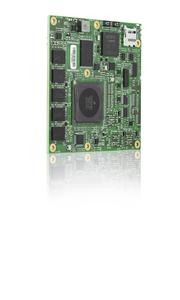

COMe-cP2020 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cP2020
- Manufacturer:
- Kontron
- Description:
- Kontrons COMe-cP2020, Freescale, Power Architecture COM for deeply embedded number crunching systems
- Availability:
- Available: Submit request for datasheets and more information.
The Power Architecture COMe-cP2020 Computer-on-Module meet the requirements for variety markets and applications:
# in the transport sector for deployment in vehicle control or event-recording units,
# in the energy sector in performance measurement systems,
# in industrial applications like PLCs or closed-loop controls for synchronous motors or turbines,
# in enterprise network and telecommunication appliances, for example, in switches, WLAN access points or Long Term Evolution (LTE)- and WiMax channel card applications.
Specifications
- Outstanding Performance/Watt ratio
- Flexible interface support by 4x SerDes lanes
- Commercial and industrial temperature versions
- COM Express compact compliant (95 x 95mm)
- Industrial Control, Energy, Communication, Transportation, Defense
Features
| CPU | Freescale, QorIQ, P2020 e500 Power Architecture |
| Bus type | Processor Local Bus |
| Cache | 32 KB L1 instruction cache and 32 KB L1 data cache for each core 512 KB L2 cache with ECC |
| Compliance | Com Express compact |
| CPU Clock | 2x 1.2 GHz commercial temp. 2x 1.0 GHz industrial temp. |
| Dimensions (H x W x D) | 95x95 mm |
| Ethernet | 3x 10/100/1000 Base-T 2x IEEE 1588 control |
| Flash Disk | 64kbit I_C EEPROM up to 2GB NAND Flash + 2MB NOR Flash 2nd 2MB SPI NOR Flash for boot recovery purposes 512kB MRAM |
| Hard Disk | MicroSD card slot / bootable |
| Humidity rel. | 93% relative Humidity at 40 �C, non-condensing (acc. to IEC 60068-2-78) |
| Interface | 2x GPIO (exclusive with SDHC usage) 2x I_C 1x SDHC 1x MDIO (IEEE 802.3 clause 22) SPI 5x IRQ; 1x IRQ OUT 16 bit eLBC (2 Devices) JTAG debug |
| Main Memory | up to 4GB DDR3-667 72-bit |
| Operating System | Linux; Wind River VxWorks 6.9.2 |
| PCI Express / PCI support | see SERDES |
| Power Consumption | est. 12W/12V |
| Real Time Clock | Yes |
| Serial | 2x UART Serial Rapid I/O see SERDES |
| Temperature | c-version 0� to +60 i-version -40�C to +70�C |
| USB | 4x USB 2.0 |
| USB Boot | tbd |
| Watchdog | Yes |
| SERDES | 4x SerDes up to 3.125 Gbps multiplexed across controllers can be configured as: PCIexpress, sRIO, GbE; Example: 1x PCIe x4 2x PCIe x1 + 1PCIe x2 2.5 Gbps 1x PCIe x2 + 2x 1GbE SGMII 2x SRIO x1 2.5Gbps + 2x GbE SGMII 2x SRIO x1 3.125 Gbps 1x SRIO x4 with 1.25/2.5 or 3.125 Gbps |
Datasheets
QorIQ Computer-on-Modules Portfolio (Release Candidate)�
[ datasheet-com-express-qoriq_web.pdf, 2.26 mb, Nov 7, 2014 ]
Datasheet Wind River VxWorks BSP for D0481 platform
[ dat_vxw69_bsp_d0481_r10_01.pdf, 0.92 mb, Nov 5, 2014 ]
Manuals
User's Guide
[ 1055-5562_10_sk-man-come-cp2020.pdf, 1.33 mb, Jan 10, 2014 ]
Variants
| COMe-cP2020c 2x1.2 2GB/1GB 66001-2010-12-2 |  | COM Express basic Computer-on-Module with Freescale, QorIQ, P2020 Dual Core 2x1.2GHz, 2GB DDR3-667 ECC memory down, 1GB onboard NAND Flash, commercial temperature range 0� to +60�C. | � |
| COMe-cP2020i 2x1.0 2GB/1GB 66002-2010-10-2 | | COM Express basic Computer-on-Module with Freescale, QorIQ, P2020 Dual Core 2x1.0GHz, 2GB DDR3-667 ECC memory down, 1GB onboard NAND Flash, extended temperature range -40� to +70�C. | � |
