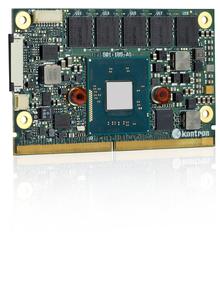

SMARC-sXBTi - Kontron
Call for Price / Availability 888.528.9233
- Part:
- SMARC-sXBTi
- Manufacturer:
- Kontron
- Description:
- SMARC module with Intel Atom, processor E3800 series with extremely low-profile and high graphics performance
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron SMARC-sXBTi Computer-on-Modules has been developed to comply with the SGET specification and is equipped with Intel Atom, processor E3800 series and up to 8 GB RAM, optional with ECC. They support the extended temperature range of -40�C to +85�C, measure only 82mm x 50mm and have an especially low-profile design thanks to the use of edge card connectors. Nevertheless, there is still enough space for up a 64GB on-board SSD to store OS and application data. A highlight of the pin-out is MIPI-compliant serial camera interface (MIPI CSI = Mobile Industry Processor Interface Camera Serial Interface). The powerful Intel Gen 7 Graphics are carried out via HDMI 1.4 with up to 2560x1600 and 60 Hz�and LVDS (optional eDP)�to the display. Further interfaces include 1x GbE LAN via Intel Ethernet Controller I210, 1x USB 3.0 and 2x USB 2.0, amongst others. Customer-specific extensions can be implemented via 2 SDIO and 3 PCIe x1 lanes with 5GT/s.
Specifications
- Intel Atom, E3800 Series
- Up to 8GB DDR3L memory down (ECC optional)
- 1x USB 3.0, 3x USB 2.0 (optional 1 OTG)
- eMMC Flash, SDIO, 2x SATA
- Industrial Grade Temperature
Features
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82mm x 50mm |
| CPU | Intel Atom, E3845, E3827, E3826, E3825 or E3815 |
| Main Memory | up to 8GB DDR3L-1333 memory down (ECC optional) |
| Graphics Controller | Intel HD Graphics (Gen7) |
| Ethernet Controller | Intel i210IT |
| Ethernet | 10/100/1000 MBit Ethernet |
| SATA | 1x SATA 3Gb/s |
| Flash Onboard | 2-64GB eMMC |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | LVDS Single Channel 18/24 bit or eDP HDMI or DP |
| USB | 3x USB 2.0 1x USB 3.0 (via AFB) |
| Serial | 1x RX/TX (Ser0) 2x UART (Ser1/3) |
| Interface | HD Audio and I2S, 5x I2C, 2x SPI, Camera Interface (2x MIPI CSI) |
| Operating System | Windows 8, Windows 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | tbd |
| Temperature | -40�C to +85�C operating, -40�C to +85�C non-operating |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
Datasheets
Datasheet SMARC-sXBT
[ datasheet_smarc-sxbti.pdf, 1.21 mb, Sep 10, 2015 ]
Manuals
User's Guide - preliminary
[ sxvvm110.pdf, 1.13 mb, Sep 7, 2015 ]
Whitepapers
Intel Atom, SoC processors on SMARC, [restrictions apply]
[ kontron_whitepaper_en_x86_soc-processors-on-smarc.pdf, 1.56 mb, Nov 19, 2014 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC-sXBTi E3845 4E/16GB 51004-4016-19-4 |  | SMARC with Intel Atom E3845, 4x1.91GHz, 4GB DDR3L ECC memory down, 16GB MLC eMMC, industrial temperature | � |
| SMARC-sXBTi E3825 2GB 51004-2000-13-2 | | SMARC with Intel Atom E3825, 2x1.33GHz, 2GB DDR3L memory down, industrial temperature | � |
| SMARC-sXBTi E3827 1E/4S 51004-1040-17-2 | | SMARC with Intel Atom E3827, 2x1.75GHz, 1GB DDR3L ECC memory down, 4GB SLC eMMC, industrial temperature | � |
| SMARC-sXBTi E3845 2GB 51004-2000-19-4 | | SMARC with Intel Atom E3845, 4x1.91GHz, 2GB DDR3L memory down, industrial temperature | � |
| SMARC-sXBTi E3827 2GB 51004-2000-17-2 | | SMARC with Intel Atom E3827, 2x1.75GHz, 2GB DDR3L memory down, industrial temperature | � |
| SMARC-sXBTi E3826 2GB 51004-2000-15-2 | | SMARC with Intel Atom E3826, 2x1.46GHz, 2GB DDR3L memory down, industrial temperature | � |
| SMARC-sXBTi E3815 1GB 51004-1000-15-1 | | SMARC with Intel Atom E3815, 1x1.46GHz, 1GB DDR3L memory down, industrial temperature | � |
Accessories
| SMARC Starterkit 51100-0000-00-S |  | The SMARC Starterkit with SMARC Eval Carrier is equipped for express evaluation purposes. | more |
| SMARC Mounting Kit 51117-0000-00-0 | | SMARC Mounting Kit | � |
| HSP SMARC,-sXBTi 51004-0000-99-1 | | Heatspreader for SMARC,-sXBTi | � |
