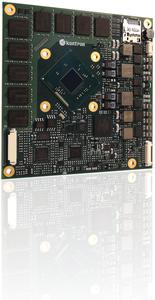

COMe-cBTi6R - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cBTi6R
- Manufacturer:
- Kontron
- Description:
- COM Express compact Type 6
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron COMe-cBTi6R comes with an especially robust design and is tailored to suit shock- and vibration-proof mobile and stationary applications as well as the extended temperature range of -40�C to +85�C. It is exclusively equipped with Intel Atom, E3800 family processors and soldered RAM. According to the different requirements of real-time controllers or memory-hungry HMIs either up to 4GB LPDDR3 with ECC or up to 8GB LPDDR3 without ECC is available. The support of Rapid Shutdown offers an extremely fast shutdown of a computer system to minimize the risk of system or data tampering in mission critical applications. Software and application data can be stored on the eMMC Flash and via 2 SATA interfaces. Any peripherals can be connected via 1x USB 3.0/2.0, 1x USB Client, 6x USB 2.0 and 4x PCIe x1.
Specifications
- Intel Atom, E3800 Series
- Up to 4GB DDR3L ECC or 8GB DDR3L non-ECC memory down
- 6x USB 2.0, 1x USB 3.0/2.0, 1x USB Client, eMMC Flash, 2x SATA, 4x PCIe
- Industrial Grade Temperature, Rapid Shutdown Support
Features
| Compliance | COM Express compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel Atom, E3845 (4x1.91GHz, 10W) Intel Atom, E3827 (2x1.75GHz, 8W) Intel Atom, E3826 (2x1.46GHz, 7W) Intel Atom, E3825 (2x1.33GHz, 6W) Intel Atom, E3815 (1x1.46GHz, 5W) |
| Chipset | - |
| Main Memory | 2x DDR3L-1333 ECC memory down up to 4GB or 2x DDR3L-1333 memory down up to 8GB |
| Graphics Controller | Intel HD Graphics (Gen7) |
| Ethernet Controller | USB SMSC LAN7500i or PCIe Intel I210IT |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 - 64GB eMMC 1x microSD Socket |
| Panel signal | DDI1: DP++ DDI2: DP++ (shared w/LVDS) DDI3: - VGA: Yes LVDS: Dual Channel 18/24bit |
| PCI Express / PCI support | 4x PCIe Gen 2.0 w/USB LAN 3x PCIe Gen 2.0 w/PCIe LAN (optional) |
| USB | 1x USB 3.0 (incl. USB 2.0) 2x USB 2.0 from CPU 4x USB 2.0 from HSIC Hub 1x USB Client |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | ECC or non-ECC memory eMMC Flash onboard (2-32GB SLC, 4-64GB MLC) microSD Socket PCIe GBEthernet FSP + Coreboot AES-NI |
| Power Management | ACPI, S5 Eco Kontron Rapid Shutdown |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors GPIO/SDIO Switch LVDS/DP Multiplexer 2x MIPI-CSI on PEG interface |
| Operating System | Windows 8, Windows 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Temperature | Industrial temperature: # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 36016-xxxx-xx-x: COMe-cBTi6R |
Datasheets
Datasheet COMe-cBTi6R
[ datasheet_come-cbti6r.pdf, 1.67 mb, Oct 13, 2015 ]
Manuals
User's Guide COMe-cBTi6R
[ cvvrm110.pdf, 1.22 mb, Apr 20, 2016 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cBTi6R E3845 8GB/16S 36016-8016-19-4 |  | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845, 8GB DDR3L non-ECC memory down, 16GB eMMC (SLC) Flash, Intel i210IT LAN, industrial temperature grade | � |
| COMe-cBTi6R E3845 8GB 36016-8000-19-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845, 8GB DDR3L non-ECC memory down, Intel i210IT LAN, industrial temperature grade | � |
| COMe-cBTi6R E3845 4GB/32S 36016-4032-19-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845, 4GB DDR3L non-ECC memory down, 32GB eMMC (SLC) Flash, Intel i210IT LAN, industrial temperature grade | � |
| COMe-cBTi6R E3845 4E 36016-4000-19-4 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3845, 4GB DDR3L ECC, SMSC LAN7500i, industrial temperature grade | � |
| COMe-cBTi6R E3827 2E 36016-2000-17-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3827, 2GB DDR3L ECC, SMSC LAN7500i, industrial temperature grade | � |
| COMe-cBTi6R E3826 2E 36016-2000-15-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3826, 2GB DDR3L ECC, SMSC LAN7500i, industrial temperature grade | � |
| COMe-cBTi6R E3825 2E 36016-2000-13-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3825, 2GB DDR3L ECC, SMSC LAN7500i, industrial temperature grade | � |
| COMe-cBTi6R E3815 1E 36016-1000-15-1 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, E3815, 1GB DDR3L ECC, SMSC LAN7500i, industrial temperature grade | � |
Accessories
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | more |
| HSP COMe-cBTi6R thread 36016-0000-99-0 | | Heatspreader for COMe-cBTi6R, threaded mounting holes | � |
| HSP COMe-cBTi6R through 36016-0000-99-1 | | Heatspreader for COMe-cBTi6R, through holes | � |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 | | COM Express Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 | | COM Express Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
