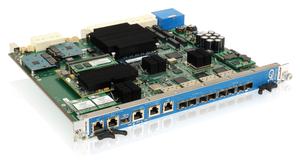

AT8910 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- AT8910
- Manufacturer:
- Kontron
- Description:
- Second generation 10G ATCA Switch with 320 Gbpsnon-blocking switching bandwidth
- Availability:
- Available: Submit request for datasheets and more information.
Kontron also developed several new software feature extensions that include, among others: enhanced Multicast support; provisioning / configuration options; Layer 2 same port bridging; Telecom clocking; IPinIP tunneling; customizable FASTPATH web interface; and, Hardware Monitoring/Management of local and remote sensors and IPMI information.
The AT8910 has been validated to support Wind River Hypervisor running Wind River Linux as guest OSs on each core of the blade۪s dual-core unit processor. Kontron also consolidated System Management functions onto the switch with an optional COMexpress IA-based module.
For rear system access the AT8910 is compatible with the RTM8940 Rear Transition Module, which provides up to 80Gbps uplink capability on the Fabric Interface:
o 2x QSFP configured as 8x 10G uplinks using 2 active copper cables; or,
o 1x QSFP configured as 4x 10G using 1 active copper cable, plus 4x SFP+ uplinks;
o Telco clocking is standard;
o Option to remove the QSFP uplinks and/or Telco clocking is available on demand.
The RTM8940 supports 2x SFP 1 GbE uplinks on Base Interface:
o 1000Base-SX/LX Optical Modules;
o 10/100/1000Base-T Copper Module.
Master Clock Generator with Stratum 3 accuracy and SyncE support:
o 2x ETSI T3 E1/T1 BITS input/outputs;
o 2x ETSI T4 E1/T1 Upstream/Downstream Chassis Clock Support;
o ATCA Synchronisation Clock Support CLK1 A/B, CLK2 A/B, CLK3 A/B;
o Clock Synchronisation to MCG of redundant HUB/RTM.
Specifications
- Support for 14x 10GbE nodes and one redundant hub
- meeting NEBS and ETSI standards
- Centralized system management with optional
- functionality based on the COMexpress form factor
- Separate switch silicon for Base and Fabric interface
- 4x 10GbE Front Fabric Uplinks;
- 4x 10GbE Front Base Uplinks
- 1x GE Mgmt. and 2x Serial Console
- Support for Synchronous Ethernet on RTM
- Optional integration Wind River Hypervisor
Features
| Capacity | 320 Gps switching performance |
| I/O Features | 4x 10GbE Front Fabric Uplinks; 4x 10GbE Front Base Uplinks |
| Supported Modules | COMexpress |
| Routing Protocols | IPv6 and IPv4 unicast and multicast routing; |
Datasheets
AT8910 10G ATCA Switch Datasheet
[ datasheet_at8910.pdf, 1.36 mb, Dec 15, 2015 ]
Manuals
AT8910 Technical Reference Manual
[ at8910_at8940-manual-v1.5.pdf, 3.04 mb, Nov 27, 2013 ]
RTM8940 Technical Reference Manual
[ rtm8940-manual-v1.1.pdf, 1.23 mb, Nov 27, 2013 ]
