- Part:
- KTA55/pITX
- Manufacturer:
- Kontron
- Description:
- " 2.5"" Pico-ITX Motherboard with AMD G-Series- Technology, DC 1.0GHz, TR40N - 9W"
- Availability:
- Available: Submit request for datasheets and more information.

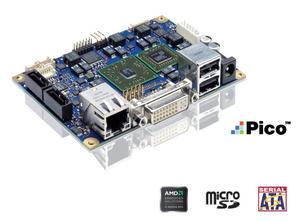

With just 9 W TDP for the accelerated processing unit (APU), which integrates besides one or two 64-bit processor cores also a programmable graphics unit together plus a PCI Express Gen 2.0 controller and a DDR3 RAM controller, the new Kontron 2.5-inch Pico-ITX embedded Motherboard is the perfect fit for low power applications.
Peripheral components are connected via 6 x USB 2.0. Networking occurs via 10/100/1000 Ethernet. Storage media can be integrated over two 6.0 Gb/s SATA connections which can make full use of the transfer rates of even the more recent solid-state drives. A space saving - and bootable - microSD card slot is available as well. A trusted platform module provides data security. An LPC bus and 8 configurable GPIOs round out the feature set.
Specifications
- Size only 100 x 72mm
- Dual Core Performance
- Superior DX11 graphics
- DVI-I & 2 x 24-bit LVDS
- 6 x USB 2.0, 2 x SATA , GBit Ethernet
- Low power consumption
- Bootable micro SD Card Slot
- 5V only power supply (internal & external connector)
- Standard KT PICO-ITX cooling concept
- Longterm available up to 7 years
Features
| Form Factor | Pico-ITX |
| Dimensions (H x W x D) | 100 x 72 mm (Pico-ITX) |
| CPU | AMD G-series 1.0 GHz dual core T40N |
| Chipset | AMD A55E |
| Main Memory | up to 1x 4 GB DDR3 SODIMM |
| Graphics | 1x DVI and VGA Output via DVI-I 2 x 24 Bit LVDS dual independent display support up to 2 x Full HD |
| Ethernet | 1 x 10/100/1000Mbit Ethernet |
| Hard Disk | 1x microSD-Card-Slot, bootable |
| SATA | 2x SATA connector incl. RAID-support |
| PCI Express / PCI support |
| USB | 6 x USB 2.0 |
| Serial | - |
| Audio | Via VT1708S |
| I/Os | 8x GPIO Backlight Output selectable 5V or 12V TPM 1.2 |
| Operating System | WEC7, WinXPe, WES7 Linux VxWorks |
| Operation Temperature | 0�C - 60�C (32�F - 140�F) |
| Cooling |
| Power Supply | 5V only power supply Internal & external power connector available Lockable DC Power Connector |
| MTBF | System MTBF (hours): 252839 Please find the test environment in the manual |
| Compliance | IEC 60068-2-64 and 60068-2-27 UL 11CA32388 |
| Power Consumption | 7.25 W Idle |
Datasheets
Datasheet KTA55/pITX
[ kta55-pitx.pdf, 1.48 mb, May 18, 2016 ]
Manuals
KTA55/pITX User�s Guide
[ ktd-s0031-g_kta55-pitx-users-guide.pdf, 2.22 mb, May 17, 2016 ]
KTA55/pITX Software Guide
[ ktd-s0043-a_kta55_softwareguide.pdf, 0.73 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs PICO-ITX
[ tech-spec_pico-itx.pdf, 0.24 mb, Feb 29, 2016 ]
Variants
| KTA55/pITX 03003-0000-10-0 | | 2.5' Pico-ITX Motherboard with AMD G-Series- Technology, DC 1.0GHz, TR40N - 9W | more |
Accessories
| DDR3-1066 SODIMM 1GB 1060-2502 |  | DDR3, 1GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1600 SODIMM 1GB 1060-2506 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1066 SODIMM 2GB 1060-2508 | | DDR3, 2GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 2GB 1060-2512 | | DDR3, 2GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 2GB 1060-2482 | | DDR3, 2GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3, 2GB, 1600MHZ 1055-8136 | | DDR3, 2GB, 204P, 1600MHZ SODIMM | � |
| DDR3-1600 SODIMM 4GB 1060-2484 | | DDR3, 4GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3-1333 SODIMM 4GB 1060-2514 | | DDR3, 4GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| Universal Accessoriy-Kit for x86 Pico-ITX 03101-0000-00-S4 | | Starterkit contains cables & other accessories | � |
| LCD Cable for LG.Philips LM150X08 821520 | | LCD cable for LG.Philips LM150X08 | � |
| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
