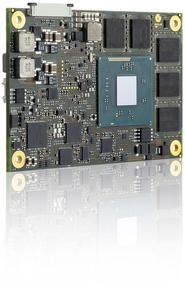

COMe-mBT10 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-mBT10
- Manufacturer:
- Kontron
- Description:
- COM Express mini Type 10
- Availability:
- Available: Submit request for datasheets and more information.
Users in all markets will benefit from double the performance, significantly improved performance-per-watt ratios and the long-term availability which the rugged new x86 modules offer. The range of applications includes everything from slim but graphics-rich and open, programmable industrial tablets and handheld PCs to in-vehicle systems and stationary HMIs and controllers. Targeted industries are POS/POI, infotainment, digital signage, gaming, and medical technology as well as industrial automation, and machine and plant engineering. With the availability of the new COM Express mini Computer-on-Modules, developers can directly make use of the extensive x86 ecosystem and the world��s leading COM Express form factor standard.
The new Kontron COMe-mBT10 COM Express mini Computer-on-Module family (55 mm x 84 mm) with Type 10 pin-out is equipped with Intel Atom, processor E3800 or Intel Celeron processors. Seven module variants are included in the range, offering wide scalability from low-power single-core Intel Atom, (1.46 GHz / 5 W TDP) processor performance for energy-sensitive applications through to genuine quad -core Intel Atom, (4x 1.91 GHz/ 10 W TDP) and Intel Celeron (4x 2.42 GHz / 10 W TDP ) processor performance in high-end applications ). The new Intel Gen 7 HD graphics integrated on the SoC offer up to three times more graphical power, including DirectX 11, Open GL 3.1, and OpenCL 1.1 support for two independent displays with 1x DP++ (DP/HDMI/DVI) up to 2560x1600@60Hz and 1x Single Channel LVDS 18/24bit with DPtoLVDS up to 1920x1200 (and optional eDP).. New video HD technology additionally enables brilliant video reproduction and stereoscopic 3D viewing for an immersive user experience. The modules come with options for data memory: two SATA II 300 Mbps interfaces or versions with additional eMMC memory (up to 64 GB) . In addition to having two serial ports, they include Super Fast USB 3.0 interfaces, up to eight USB 2.0, Gigabit Ethernet, plus three Gen 2 PCI-Express x1 lanes for customer specific expansions.
First-off product samples of the Kontron COMe mBT10 COM Express mini Computer-on-Module family will be available in January 2014. Please visit the Kontron COMe mBT10 product family web page for further information.
Specifications
- Intel Atom, E3800 & Celeron Series
- Up to 4GB DDR3L memory down (ECC optional)
- 1x USB 3.0, up to 7x USB 2.0, 1x USB client (optional), eMMC Flash, 2x SATA, SD-Card
- Commercial & Industrial Grade Temperature
Features
| Compliance | COM Express mini, Pin-out Type 10 |
| Dimensions (H x W x D) | 84 x 55 mm |
| CPU | COMe-mBTi10: Intel Atom, E3845 (4x1.91GHz, 10W) Intel Atom, E3827 (2x1.75GHz, 8W) Intel Atom, E3826 (2x1.46GHz, 7W) Intel Atom, E3825 (2x1.33GHz, 6W) Intel Atom, E3815 (1x1.46GHz, 5W) Intel Atom, E3805 (2x1.33GHz, 3W) COMe-mBTc10: Intel Celeron J1900 (4x2.00GHz, 10W) Intel Celeron N2930 (4x1.83GHz, 7.5W) Intel Celeron N2807 (2x1.58GHz, 4.5W) Intel Atom, E3815 (1x1.46GHz, 5W) |
| Chipset | - |
| Main Memory | up to 4GB DDR3L-1066/1333 memory down (ECC optional) |
| Graphics Controller | Intel HD Graphics (Gen7) |
| Ethernet Controller | COMe-mBTi10: Intel I210IT COMe-mBTc10: Intel I211AT |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 - 64GB eMMC (with E3800 Series CPU only) |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI: DP++ LVDS: Single Channel 18/24bit or eDP |
| USB | 1x USB 3.0 (incl. USB 2.0) 3x USB 2.0 from CPU 4x USB 2.0 via Hub (34006 only) |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN Trusted Platform Module TPM 1.2 ECC memory eMMC Flash onboard (2-32GB SLC, 4-64GB MLC) on Variants with E3800 CPU eDP instead of LVDS General Purpose SPI instead of Boot SPI AES-NI |
| Power Management | ACPI, S5 Eco |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors GPIO/SDIO Switch General Purpose SPI optional |
| Operating System | Windows 8, Windows 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Temperature | Commercial temperature (COMe-mBTc10): # 0�C to +60�C operating, -30�C to +85�C non-operating Industrial temperature (COMe-mBTi10): # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 34006-xxxx-xx-x: COMe-mBTi10, industrial temperature 34007-xxxx-xx-x: COMe-mBTc10, commercial temperature |
Datasheets
COMe-mBT10
[ datasheet_come-mbt10.pdf, 1.18 mb, Jan 18, 2016 ]
Manuals
User's Guide COMe-mBT10
[ mbt1m120.pdf, 1.35 mb, Sep 28, 2015 ]
Tech Spec Sheet
COM EXPRESS mini
[ tech-spec_comexpress-mini.pdf, 0.22 mb, Feb 29, 2016 ]
Variants
| COMe-mBTi10 E3845 4E/16GB 34006-4016-19-4 |  | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3845, 4x1.91GHz, 4GB DDR3L ECC memory down, 16GB MLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3845 2GB 34006-2000-19-4 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3845, 4x1.91GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3827 2GB 34006-2000-17-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3827, 2x1.75GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3827 1E/4S 34006-1040-17-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3827, 2x1.75GHz, 1GB DDR3L ECC memory down, 4GB SLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3826 2GB 34006-2000-15-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3826, 2x1.46GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3825 2GB 34006-2000-13-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3825, 2x1.33GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3815 1E/2S 34006-1020-15-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3815, 1x1.46GHz, 1GB DDR3L ECC memory down, 2GB SLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTi10 E3815 1GB 34006-1000-15-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3815, 1x1.46GHz, 1GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | � |
| COMe-mBTc10 J1900 4GB 34007-4000-20-4 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Celeron J1900, 4x2.00GHz, 4GB DDR3L memory down, commercial grade | � |
| COMe-mBTc10 N2930 2GB 34007-2000-18-4 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Celeron N2930, 4x1.83GHz, 2GB DDR3L memory down, commercial grade | � |
| COMe-mBTc10 N2807 2GB 34007-2000-16-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Celeron N2807, 2x1.58GHz, 2GB DDR3L memory down, commercial grade | � |
| COMe-mBTc10 E3815 1GB 34007-1000-15-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom E3815, 1x1.46GHz, 1GB DDR3L memory down, commercial grade | � |
Accessories
| COMe Ref.Carrier-i T10 34104-0000-00-0 |  | COM Express Reference Carrier Type 10 for industrial temperature | more |
| ADA-Type10-Mezzanine 96007-0000-00-8 | | COM Express Type10 Mezzanine Card provides support for USB 3.0, PCIe x4, DP++, SATA and GBLAN | � |
| HSP COMe-mBT10 thread 34006-0000-99-0 | | Heatspreader for COMe-mBT10, threaded mounting holes | � |
| HSP COMe-mBT10 through 34006-0000-99-1 | | Heatspreader for COMe-mBT10, through holes | � |
| HSP COMe-mBT10 slim thread 34006-0000-99-2 | | Slimline heatspreader 6.5mm for COMe-mBT10, threaded mounting holes | � |
| HSP COMe-mBT10 slim through 34006-0000-99-3 | | Slimline heatspreader 6.5mm for COMe-mBT10, through holes | � |
| COMe mini Active Uni Cooler 34099-0000-99-0 | | COM Express mini Universal Active Cooler for Heatspreader Mounting (for CPU's | � |
| COMe mini Passive Uni Cooler 34099-0000-99-1 | | COM Express mini Universal Passive Cooler for Heatspreader Mounting (for CPU's | � |
| COMe mini Passive Uni Cooler Slim 34099-0000-99-2 | | COM Express mini Universal Passive Cooler Slim-line for Heatspreader Mounting (for 3-5W CPU's) | � |
| COMe mMount Kit 5/8mm 1set 34017-0000-00-0 | | COM Express Mounting Kit for COMe mini and 5mm/8mm Stand-Off | � |
