CP-POCKET - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP-POCKET
- Manufacturer:
- Kontron
- Description:
- For demands beyond a Box PC
- Availability:
- Available: Submit request for datasheets and more information.
FLEXIBILITY: Just plug another I/O board where needed.
VARIABILITY: Upgrade to another CPU for higher performance.
SUPPLIER-INDEPENDENCY: For special needs, select any market-available component.

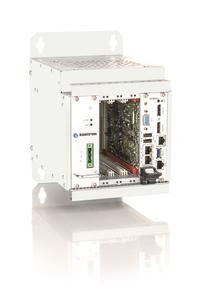

Its modular form factor is the ideal choice for any industrial application, when additional hardware flexibility is needed.
CP-POCKET is available in both an AC and a DC standard version. Each with a 75 watt power supply and a 4-slot CompactPCI backplane. The power supply provides the 5 and 3.3 volt for the CPCI boards inside the system.
Three performance levels are available: Variants with CP305, equipped with a 1.6 GHz Intel Atom, N270 CPU, variants with CP307-V, 1.86 GHz Intel Celeron M 440, and variants with CP3003-V, 1.0 GHz Intel Celeron 807UE (32nm technology).
In case an alternative selection out of the wide choice of Kontron��s 3U CPU blades is requested, the CP-ASM4-POCKET chassis is also available as an open platform.
CP-Pocket is equipped with a cable strain-relief and a fan. Proposal of fanless variants (for CP305) on request.
Specifications
- Open platform with cost optimized CPU blades
- Flexible system expansion
- CompactPCI: modular, robust, long-lasting
- Pocket size and pocket price
Features
| Depth | 210 mm |
| 19' Rack Mounting | Wall mount |
| Backplanes | 4 slot |
| Rear I/O | no |
| Drives | HDD optional |
| Characteristics | Integrated CP305 or CP307-V |
| Power Supply | 75 Watt AC or DC |
| Cooling | yes |
| Housing | 28 HP /4U |
Datasheets
Datasheet CP-POCKET
[ datasheet-cp-pocket.pdf, 0.5 mb, Nov 11, 2014 ]
CP307-V Datasheet
[ ds_cp307_v.pdf, 1.41 mb, Dec 10, 2014 ]
CP305 Datasheet
[ ds_cp305_oct_2012.pdf, 1.72 mb, Nov 12, 2014 ]
Manuals
AC Power supply
[ cp3-sve-m76ac_manual_power-supply.pdf, 0.21 mb, Nov 27, 2013 ]
Backplane
[ cp3-bp4-m_manual_backplane.pdf, 0.2 mb, Nov 27, 2013 ]
CP305 User Manual [restrictions apply]
[ 1035-7168-20-sk-man-cp305.pdf, 0.65 mb, Nov 27, 2013 ]
CP305 Hardware Introduction Manual
[ 1035-7168-20-sk-man-cp305_introduction.pdf, 0.16 mb, Nov 27, 2013 ]
CP307-V Users Manual [restrictions apply]
[ 35856_10_cp307-v_users_manual.zip, 0.61 mb, Nov 27, 2013 ]
CP307 / CP307-V BIOS Manual
[ 35978-20-sk-man-bios-cp307_cp307-v.pdf, 0.88 mb, Nov 27, 2013 ]
CP305 BIOS Manual
[ 1035-8356-10-sk-man-bios-cp305.pdf, 0.84 mb, Nov 27, 2013 ]
DC Power Supply
[ 24139_pd16_01_sk-man-cpsu-cp3_m75dc-24.pdf, 0.53 mb, Nov 27, 2013 ]
Variants
| CP3003-V |  | 3U CompactPCI Intel Celeron Value Line CPU | more |

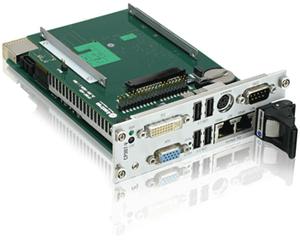

| CP307-V |  | Celeron M 1.86GHz (440), Industry tailored CPU | more |

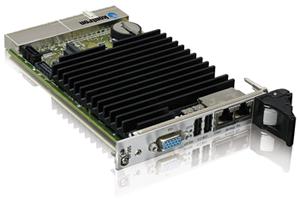

| CP305 |  | Intel Atom, 3U CompactPCI CPU board | more |
| CP3-SVE-M76AC |  | 75 Watt AC power supply with M-connector | more |
| CP3-SVE-M75DC-24 CP3-SVE-M75DC-24 |  | 75 Watt DC power supply with M-Connector | more |
Accessories

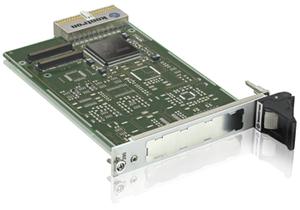

| CP390 CP390 |  | 3U CompactPCI PMC Carrier for one PMC module | more |
| CP932 CP932 |  | 5+1 Port Gigabit Ethernet Switch with integrated NIC | more |
| CP930 CP930 |  | 5 Port Fast Ethernet Switch | more |

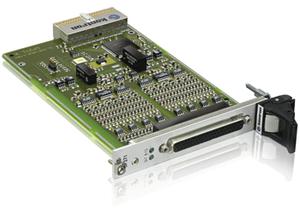

| CP371 CP371 |  | 16 Channel 12-Bit Analog Input Board | more |

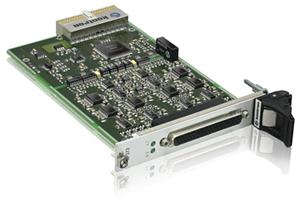

| CP372 CP372 |  | 8 Channel 12-bit Analog Output Board | more |

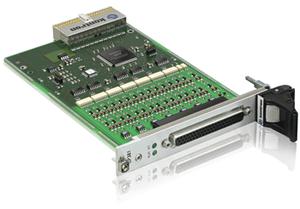

| CP381 CP381 |  | 30 Channel Isolated Digital Input Board | more |

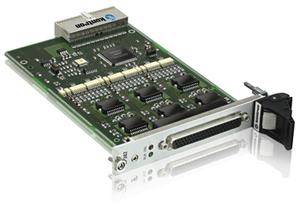

| CP382 CP382 |  | 24 Channel Isolated Digital Output Board | more |

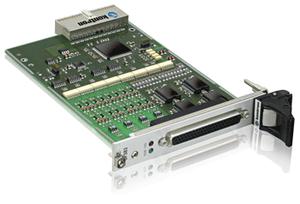

| CP383 CP383 |  | 16 Channel Digital Input, 16 Channel Digital Output Board | more |
