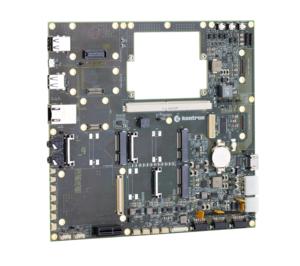

SMARC Evaluation Carrier - Kontron
Call for Price / Availability 888.528.9233
- Part:
- SMARC Evaluation Carrier
- Manufacturer:
- Kontron
- Description:
- SMARC Evaluation Carrier
- Availability:
- Available: Submit request for datasheets and more information.
The SMARC Evaluation carrier board is designed to allow�embedded application developers to get up and running�quickly on the SMARC modular platform, giving them a�head start on the total system design. Simply select the�SMARC module best suited for your application needs,�install the module and you are ready to get started. The
SMARC Evaluation Carrier is compliant with the SMARC�specification and supports a broad range of interface�options dedicated for low power applications including�Gigabit Ethernet support, SIM card socket, Kontron�LVDS adapter, and multiple mini-PCI Express�interface options.
Specifications
- Evaluation Carrier Board for ultra-low power ARM and SoC-based Computer-on-modules
- Broad range of interface options for design development flexibility
- Dual power options for mobile and fixed base applications
- Compliant with SMARC (Smart Mobile Architecture) specification by SGET
Features
| Supported Modules | Accepts SMARC, Modules 82mm x 50mm and 82mm x 80mm |
| Dimensions (H x W x D) | 210mm x 200mm |
| Graphics | HDMI Parallel LCD port LVDS KLAS Adapter �� 24 bit color packing, single and dual channel LVDS |
| Ethernet | GbE port with integrated magnetics |
| Audio Controller | On-board I2S Audio Codec |
| Hard Disk | SATA MO-300 site Micro SD Card slot eMMC Mezzanine site |
| Humidity | 93% relative Humidity at 40�C, non-condensing |
| PCI Express / PCI support | PCIe slot Mini-PCIe sites (2) with shared SIM slot |
| Power Supply | Lab bench power input option �� 3.0V to 5.25V input voltage range Support for Li-Ion batteries and on-board charging circuit |
| Serial | RS232 support for all 4 SMARC serial ports 2x CAN |
| USB | 7x USB USB OTG micro AB connector USB R/A Type A connector |
| Additional | RTC backup power sources �� Lithium coin cell socket and SuperCap option On-board accelerometer SIM card support |
Datasheets
SMARC Evaluation Carrier (Release Candidate)�
[ datasheet_smarc-eval-carrier.pdf, 0.82 mb, Sep 14, 2015 ]
Manuals
User's Guide SMARC Evaluation Carrier
[ smarc-eval-carrier-user-guide-v1.0-.pdf, 3.69 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 0.45 mb, Feb 29, 2016 ]
Variants
| SMARC, Evaluation Carrier 51100-0000-00-0 |  | Evaluation Carrier Board for SMARC, Computer-on-modules | � |
