COMe Starterkit FPGA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe Starterkit FPGA
- Manufacturer:
- Kontron
- Description:
- COM Express Starterkit FPGA
- Availability:
- Available: Submit request for datasheets and more information.

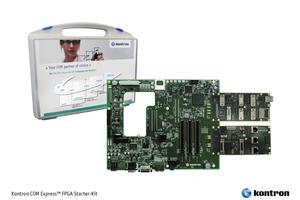

Ready to use Starterkit with COM Express FPGA Evaluation Carrier Board incl.Altera Cyclone IV GX 150 FPGA, 2 HSMC cards for automation, communication and video features, 12 V power supply and accessories.
Specifications
- COM Express FPGA Evaluation Carrier Board for pin-out Type 2/1 or Type 10
- onBoard Altera FPGA Cyclone IV GX incl. IP binary
- HSMC card for Video/Mass storage and I/O
- Choose your COM Express module - Plug & Go
Features
| Power Supply | ATX power supply 24 + 4 pin |
| Mounting | ETXexpress mounting Kit (screws and spacers) |
| Evaluation board | COM Express FPGA Baseboard ATX form factor 305 mm x 244 mm |
| Supported Modules | COM Express pin-out Type 2/1 or Type 10 Computer-on-Modules specialy Kontrons ETXexpress, microETXexpress and nanoETXexpress COM's. COM please order separately. |
| Expansion | HSMC Mass storage and Video Board Part: 2x SATA; ATA HD Power; General Purpose XCVR; Display Output for integrated nationoal FPD2 Link(LVDS) General Display Output (LVDS); Camera Link Input; MOST Network Interface for SMSC OS881110 evaluation board |
| Chipset | FPGA Altera Cyclone IV GX 1 x PCIe Lane by 1; strap option Lane 1,2,3 on FPGA optional LVDS channel A to FPGA only integrated USB Blaster for programming by USB Interface DDR2 SODIMM slot |
| Additional | IP binary for Altera HSMC cards on seperate USB stick height adapter for Type 1/10 |
| Cable Interface | 1x USB-Blaster, cable 1x DSUB3 cable |
Datasheets
Datasheet COM Express, FPGA Starterkit (Release Candidate)�
[ datasheet_com-express-fpga-starterkit.pdf, 1 mb, Nov 27, 2013 ]
Manuals
COM Express FPGA Evaluation Board Manual
[ adaom120.pdf, 2.68 mb, Nov 27, 2013 ]
