- COMe-mTT10
- Manufacturer:
- Kontron
- Description:
- COM Express mini Type 10
- Availability:
- Available: Submit request for datasheets and more information.

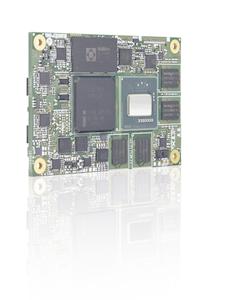

The credit card size (84mm x 55mm) COM Express mini SFF COM, COMe-mTT10, featuring an Intel Atom, processor E6xx and is designed according to the PICMG COM Express R.2.0 pin-out Type 10 specification.
The COMe-mTTi10 family is designed with industrial-grade components that are fully functional even at the extended temperature range (E2) from -40 to +85�C, special build versions for commercial temperature are available as well. With its memory onboard, a robust micro-SD Card socket or optional a SATA Flash memory, it is ideal for use in harsh environments and thus complements the existing portfolio perfectly.
Specifications
- Intel Atom, E600/E600T Series
- Designed for Industrial temperature range -40�C to +85�C
- Variants for commercial temperature grade 0�C to 60�C
- Ready for use in harsh environments
Features
| Compliance | COM Express mini, Pin-out Type 10 |
| Dimensions (H x W x D) | 84 x 55 mm |
| CPU | Intel Atom, E680T/E680 (1.6GHz, 4.5W) Intel Atom, E660T/E660 (1.3GHz, 3.6W) Intel Atom, E640T/E640 (1.0GHz, 3.6W) Intel Atom, E620T/E620 (0.6GHz, 3.3W) |
| Chipset | Intel Platform Controller Hub EG20T |
| Main Memory | up to 2GB DDR2-800 memory down |
| Graphics Controller | Intel GMA 600 |
| Ethernet Controller | Broadcom BCM54610 |
| Ethernet | 10/100/1000 Mbit LAN |
| Hard Disk | 2 x SATA 3 Gb/s |
| Flash Onboard | 2 - 64GB SATA NANDrive |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI: SDVO LVDS: Single Channel 18/24bit |
| USB | 6x USB 2.0 1x USB Client |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | AMI Aptio (UEFI) |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o PCH Trusted Platform Module TPM 1.2 SATA Flash (2-32GB SLC, 4-64GB MLC) |
| Power Management | ACPI 3.0, S5 Eco |
| Power Supply | 4.75V �� 14V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors GPIO/SDIO Switch |
| Operating System | Windows 7, WES7, Windows XP, XPe, CE6, Linux, VxWorks |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating Industrial temperature: # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 34003-xxxx-xx-x: COMe-mTTi10, industrial temperature 34004-xxxx-xx-x: COMe-mTTc10, commercial temperature |
Datasheets
Datasheet COMe-mTT10
[ datasheet_come-mtt10.pdf, 1 mb, Sep 10, 2015 ]
Manuals
User's Guide COMe-mTT10
[ ntc1m130.pdf, 1.15 mb, Dec 10, 2014 ]
Whitepapers
nanoETXexpress, Specification Rev. 1.0
Specification for nanoETXexpress, Rev. 1.0
[ nanoetxexpress_specification_rev1.0.pdf-2, 0.38 mb, Nov 27, 2013 ]
nanoETXexpress specification Rev. 2.0 (Release Candidate)�
[ nanoetxexpress-specification-rev-2-0.pdf, 0.3 mb, Nov 27, 2013 ]
nanoETXexpress, White Paper Rev. 06.1
White Paper nanoETXexpress, Rev. 06.1
[ nanoetxexpress_whitepaper_rev06.1.pdf, 0.13 mb, Nov 27, 2013 ]
nanoETXexpress - QNX Fastboot Whitepaper
Whitepaper nanoETXexpress - QNX fastboot technology - RTOS for x86 nanoETXexpress-SP
[ kontron-qnx-fastboot-whitepaper.pdf, 0.56 mb, Nov 27, 2013 ]
Technology Paper about COM Express Concept
Technology Paper about COM Express Concept - COM Express - One Concept, Ever Smaller.
[ com_expr_6seiter_11_2011_en_web.pdf, 2.77 mb, Nov 27, 2013 ]
COM Express Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express Carrier Boards, Rev. 2.0
[ picmg_comdg_2.0-released-2013-12-06.pdf, 3.11 mb, Feb 11, 2014 ]
Extended Temperature Device and Testing Advancements for COMs and SFF SBCs Enable Reliable, Long Life Systems (Release Candidate)�
[ whitepaper-extended-temperature_en.pdf, 1.07 mb, Nov 27, 2013 ]
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com.0-rev.-2.0_en.pdf, 2.21 mb, Nov 27, 2013 ]
Tech Spec Sheet
COM EXPRESS mini
[ tech-spec_comexpress-mini.pdf, 0.22 mb, Feb 29, 2016 ]
Variants
| COMe-mTTi10 E680T 1GB/4GB 34003-1040-16-1 |  | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E680T 1.60GHz, EG20T PCH, 1GB DDR2 memory down, 4GB onboard SSD, industrial temperature | � |
| COMe-mTTi10 E660T 1GB/4GB 34003-1040-13-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E660T 1.30GHz, EG20T PCH, 1GB DDR2 memory down, 4GB onboard SSD, industrial temperature | � |
| COMe-mTTi10 E640T 1GB/4GB 34003-1040-10-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E640T 1.00GHz, EG20T PCH, 1GB DDR2 memory down, 4GB onboard SSD, industrial temperature | � |
| COMe-mTTi10 E680T 2GB/mSD 34003-2000-16-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E680T 1.60GHz, EG20T PCH, 2GB DDR2 memory down, microSD Slot, industrial temperature | � |
| COMe-mTTi10 E680T 1GB/mSD 34003-1000-16-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E680T 1.60GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot, industrial temperature | � |
| COMe-mTTi10 E660T 1GB/mSD 34003-1000-13-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E660T 1.30GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot, industrial temperature | � |
| COMe-mTTi10 E640T 1GB/mSD 34003-1000-10-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E640T 1.00GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot, industrial temperature | � |
| COMe-mTTi10 E620T 512M/mSD 34003-5100-06-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E620T 600MHz, EG20T PCH, 512MB DDR2 memory down, microSD Slot, industrial temperature | � |
| COMe-mTTc10 E680 1GB/mSD 34004-1000-16-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E680 1.60GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot | � |
| COMe-mTTc10 E660 1GB/mSD 34004-1000-13-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E660 1.30GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot | � |
| COMe-mTTc10 E640 1GB/mSD 34004-1000-10-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E640 1.00GHz, EG20T PCH, 1GB DDR2 memory down, microSD Slot | � |
| COMe-mTTc10 E620 512MB/mSD 34004-5100-06-1 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, E620 600MHz, EG20T PCH, 512MB DDR2 memory down, microSD Slot | � |
Accessories

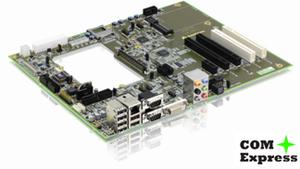

| COMe Eval Carrier T10 34101-0000-00-1 |  | COM Express Evaluation Carrier Type 10 | more |
