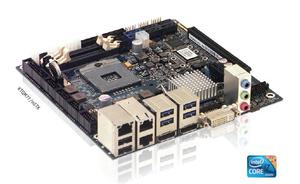

KTQM77/mITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTQM77/mITX
- Manufacturer:
- Kontron
- Description:
- KTQM77/mITX embedded & longterm available Mini ITX board
- Availability:
- Available: Submit request for datasheets and more information.
Kontron۪s newest embedded Mini-ITX-board also supports Intel Active Management Technology (Intel AMT 8.0) for remote management and easy maintenance resulting in higher system availability and lower total costs.
If your application does require the high end performance, but not all the features of this powerfull Mini-ITX board: it's available with HM76 Chipset and reduced feature-set as well - with a more favorable pricing:
� 1x LAN
� 12 x USB
� No Firewire
� No AMT
Productname: KTHM76/mITX
Specifications
- 3rd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel QM77 Chipset
- Long term available embedded Mini ITX-Motherboard (up to 7 years after release)
- High graphics performance incl. 2 x Display Port, LVDS & DVI
- 3 independent display support
- 6 x SATA (incl. 2 x SATA III), 4 x USB 3.0 & 10 x USB 2.0 ), 3 x Intel GB LAN incl. Intel AMT 8.0 support
- mSATA interface highspeed compact SSD storage
- ATX and single 12V power supply
- One PCIe x 16, Gen. 3.0 plus one PCIe x 1, Gen. 2.0
- Unique multipurpose KT Feature Connector
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm |
| CPU | Supports: Intel i7-,i5,-i3 2 Core and 4 Core CPUs Intel Core i3-3120ME Processor, 2.40GHz, dual Core, 35W Intel Core i5-3610ME Processor, 2.70GHz, dual Core, 35W Intel Core i7-3610QE Processor, 2.30GHz, quad Core, 45W |
| Chipset | Intel QM77 |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | 5 GT/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 4000 integrated supporting 3 independent Displays |
| Graphics | 2 x Display port 1x DVI-I 1x LVDS / Embedded DP, HDMI via Adapter (1 x PCIe x 16 PCI slot) |
| Ethernet Controller | 1x Intel Lewisville 82579LM 2x Intel Hartwell 82574L |
| Ethernet | 3 x Intel GB LAN (1x AMT 8.0 support) |
| Hard Disk | 6 x SATA (4x SATA150/300 and 2x SATA600) w. RAID 0,1,5,10 support mSATA for SSD Storage |
| Parallel Port | optional |
| Flash Onboard | n/a |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x16 1 PCIe x1 |
| Mini-PCI | 2 x mini PCI-Express |
| USB | 10x USB 2.0 4x USB 3.0 |
| IEEE 1394 Firewire | 2x IEEE1394a (Pin header) |
| Serial | 4x RS232 |
| Rear I/O | 2x Dual USB +Displayport 1x Dual USB + Ethernet 1x Dual Ethernet 1x DVI Audio 3x |
| Audio Controller | HD 7.1 Mic x2 CDROM in and SPDIF |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | DAC up to 160 GPIO TPM KT embedded feature port with ADC ATX and single 12V power supply |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C - 60�C (32�F - 140�F) |
| Operating System | WES7 32/64bit Linux VxWorks, WindRiver Linux |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 |
Datasheets
Datasheet KTQM77/mITX
Datasheet KTQM77/mITX
[ datasheet_ktqm77-mitx.pdf, 1.11 mb, Jan 12, 2016 ]
Datasheet KTHM76/mITX
Datasheet KTHM76/mITX
[ datasheet-kthm76-mitx.pdf, 1.22 mb, Nov 27, 2013 ]
Manuals
KTD-N0850 KTQM77 - KTHM76 Users Guide
[ ktd-n0850-h_ktqm77---kthm76-users-guide.pdf, 3.32 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTHM76/mITX 810481-4500 |  | KTHM76/mITX with 1x GB LAN, no firewire, no AMT | � |
| KTQM77/mITX 810480-4500 | | KTQM77/mITX embedded & longterm available Mini ITX board | more |
| Intel Core i3-3120ME 1052-5613 | | Intel Core i3-3120ME, 2,4GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i5-3610ME 1052-5615 | | Intel Core i5-3610ME, 2,7GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i7-3610QE 1051-9277 | | Intel Core i7-3610QE, 2,3GHz, quad Core, 6MB Cache, 45W, FCPGA988, Embedded | � |
Accessories
| DDR3-1066 SODIMM 1GB 1060-2502 | | DDR3, 1GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3, 1GB, 1333MHZ 1054-3780 | | DDR3, 1GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 1GB 1060-2505 | | DDR3, 1GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3-1066 SODIMM 2GB 1060-2508 | | DDR3, 2GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 2GB 1060-2512 | | DDR3, 2GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3, 2GB, 1600MHZ 1055-8136 | | DDR3, 2GB, 204P, 1600MHZ SODIMM | � |
| DDR3-1066 SODIMM 4GB 1060-2510 | | DDR3, 4GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 4GB 1060-2514 | | DDR3, 4GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 8GB 1060-2504 | | DDR3, 8GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| Accessory kit for KTQM67, KTQM77 826598 | | 4x COM cable (2.54mm, 100mm), 2x FFC 100mm 32pin cable, 1x LPT Module, 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End calbe, 1x LVDS Open-End cable, 6x SATA cable (500mm), 2x IEEE1394 Bracket, 4x Cable+Bracket (USB, 10pol | � |
| Active Cooler for KTQM67 1044-9447 |  | Active Cooler for socket G2 (rPGA 988B) ZIF socket CPU | more |
| Active Cooler for KTQM67 33mm longlife 1052-6345 | | Active Cooler for KTQM67 for socket G2 (rPGA 988B) 33mm longlife | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| AUO G121SN01 Cable 821518 | | Cable for AUO G121SN01 | more |
| LVDS Open-End Cable 821515 | | LVDS Open-End Cable 540mm | more |
| LCD LVDS Cable for JAE FI-S20 1027-2631 | | LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21) | � |
| LVDS 1:1 Cable 1027-3591 | | LVDS 1:1 cable, 2x 40 pin connector, 405mm | � |
| LCD Cable for LG.Philips LM150X08 821520 | | LCD cable for LG.Philips LM150X08 | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| IEEE1394 Bracket Dual 6-pole 821040 | | IEEE1394 Bracket Dual 6-pole | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
