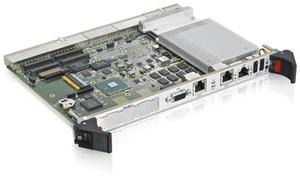

CP6002 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6002
- Manufacturer:
- Kontron
- Description:
- CPCI/PICMG 2.16 Intel Core,i7 Rugged System/Peripheral CPU
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- High computing performance by Intel Core, i7 and Celeron processors
- Various rugged levels for demanding application requirements
- Comprehensive I/O capabilities
Features
| CPU | Intel Core, i7 Dual Core Processor up to 2.53GHz |
| DRAM | up to 8 GByte, DDR3 1066 MHz with ECC, soldered |
| Chipset | Intel QM57 PCH |
| 4HP Version | 2xGbE Ethernet, VGA, RS232, 2xUSB2.0, LEDs, Reset, up to 2xPMC |
| Additional | Rugged versions, forced air and conduction cooling on project request, TPM, Watchdog |
| Cache | 4 MByte |
| DRAM speed | 1066 MHz |
| Ethernet | 4x Gigabit, 2 fixed to front, 2 rear, PICMG 2.16 compliant |
| Flash | CompactFlash socket or SATA Flash device |
| Flash Disk | see flash |
| Front Side Bus | Memory Bus 1066 MHz |
| Frontpanel | VGA (CRT), 2x Ethernet, 2x USB, 1x Serial, LEDs, Reset, up to 2x PMC |
| Graphics | Chipset internal |
| IPMI | Yes (IPMI V1.5) |
| PMC | up to 2x PMC: 64-bit / 66 MHz or up to 2x XMC PCIe x8 |
| Power Consumption | 2.53 GHz: 45W; 2.0 GHz: 35W |
| Rear I/O | Yes |
| SATA | Up to 6 SATA ports, 1 onboard SATA HD option, SATA Flash option |
| System peripheral | system/stand alone |
| Temperature/Humidity | 0-60�C; 93% rel. humidity; -40-+70�C optionally |
| USB | 6x USB 2.0 |
Datasheets
Datasheet for Wind River Linux BSP
[ dat_lin_bsp_wr_b3001_01.pdf, 0.76 mb, Jan 21, 2015 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw_bsp_b3001_01.pdf, 0.83 mb, Nov 27, 2013 ]
CP6002 Data Sheet
[ datasheet_cp6002.pdf, 0.93 mb, Nov 30, 2015 ]
Datasheet for Linux installation image B3001
for AM4020, AM5020, CP6002, CP3002, CP3002-RC, CP3002-RA
[ dat_lin_img_b3001_r13.pdf, 1.05 mb, Jan 21, 2015 ]
Datasheet EFIBIOS B3401 for CP6002
[ dat_efibios_b3401.pdf, 0.7 mb, Nov 27, 2013 ]
Datasheet for Linux BSP B3001
[ dat_lin_bsp_b3001_r14.pdf, 0.78 mb, Nov 27, 2013 ]
Datasheet of the IPMI Firmware of CP6002
[ dat_fw_ipmi_b3401.pdf, 0.66 mb, Nov 27, 2013 ]
Manuals
CP6002 uEFI BIOS User Manual
[ 1039-1612_20_sk-man-uefi-bios-cp6002.pdf, 0.47 mb, Nov 27, 2013 ]
CP6002 IPMI User Manual
[ 1039-1613_20_sk-man-cp6002-ipmi-fw-ug.pdf, 0.35 mb, Nov 27, 2013 ]
CP6002 Introduction Manual
[ 1036-6431_30_sk-man-cp6002_introduction.pdf, 0.3 mb, Nov 27, 2013 ]
CP6002 User Manual [restrictions apply]
[ 1036-6431_30_sk-man-cp6002.pdf, 0.9 mb, Nov 27, 2013 ]
Variants

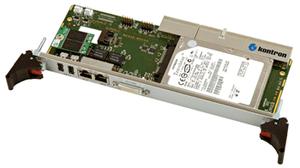

| CP-RIO6-001 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 processor board | more |
| CP-RIO6-A / B / M CP-RIO6-A / A216 |  | 4HP Rear I/O interface for a 6U Compact PCI CP6016 card | � |

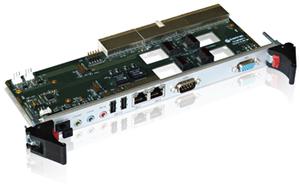

| CP-RIO6-A / CP-RIO6-A216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |

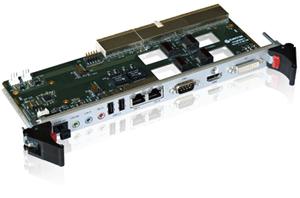

| CP-RIO6-B / CP-RIO6-B216 |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 card | more |

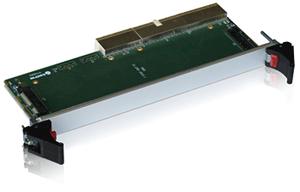

| CP-RIO6-M |  | 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005 & CP6016 card | more |
