- Part:

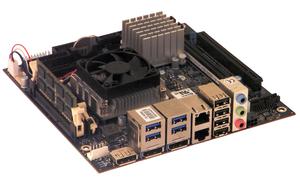

- KTA70M/mITX
- Manufacturer:
- Kontron
- Description:
- Embedded Mini-ITX Motherboard with AMD R-Series Technology
- Availability:
- Available: Submit request for datasheets and more information.
The new Kontron embedded Mini-ITX motherboard KTA70M/mITX delivers scalable performance from soldered dual-core up to quad-core APUs at an optimal balanced performance per watt ratio. The new Kontron embedded Mini-TX motherboard maintains a remarkably low Thermal Design Power (TDP) of 25 watts, even for the fastest APU, which makes it ideal for any thermal and energy constrained applications such as those found in casino gaming or medical. Furthermore it enables innovative digital signage applications with support for large displays with resolutions up to 4096x2160pixels. This avoids pixilation even in close proximity to the audience for a truly immersive visual experience. Developers can also utilize the accelerated processing capabilities of the APU with up to 426 GFLOPs, to accelerate both graphics- and compute-intensive applications while using industry-standard libraries such as OpenCL, DirectX 11 and DirectCompute, which help to minimize development times and simplify design-in processes.
As security becomes more and more important in intelligent connected devices, the Kontron KTA70M/mITX integrates a Secure Asset Management Unit, which allows for hardware-assisted encryption/decryption of content, enabling less CPU overhead and lower power when dealing with protected content in gaming and medical applications, for example. The embedded feature connector, which features 160 GPIO including analog-to-digital converters (ADC) and digital-to-analog converters (DAC), it eliminates the need for individual I/O boards and thus reduces the bill of material and development time. Finally, the Kontron KTA70/mITX, with long-term availability, integrates all the high-quality features such stable solid capacitors (POSCAP) common to all Kontron motherboards.
The KTA70/mITX is based on the AMD A70M controller hub and offers a maximum of 16 GB RAM. It is available with the quad-core AMD Embedded R-Series APU R-460L (2.0 GHz, 2.8 GHz in turbo mode) and the dual core R-252F APU (1.9 GHz, 2.4 in turbo mode). Connections for video include 3x DisplayPort (DP). Additional Displays can be connected either via DP ��daisy chain� or with an optional DP add-on card. For expansion cards it features 1x Gen 2.0 PCI Express x8 PEG port and 1x Gen 2.0 PCI Express x4 slot, 4x USB 3.0, 10x USB 2.0, and 2x GbE-LAN allowing for extensive peripheral and networking options. A wide range of storage media can be connected via the five SATA600 interfaces with RAID 0/1 functionality and one mSATA (mini-SATA) socket for state-of-the-art, on-board SSD. A Trusted Platform Module 1.2 for safety-related applications tops off the feature-set of the new motherboard.
Operating system support is provided for Windows 7, Windows Vista, Windows XP, Windows Embedded Standard 7, VxWorks, as well as Linux (Red Hat Enterprise, Novell SuSE Linux Enterprise, Red Flag Linux and Wind River Linux, among others). The Kontron embedded Mini-ITX motherboard KTA70/mITX is available in series production .
Specifications
- AMD Embedded R-Series Accelerated Processing Unit (APU) Plattform for low power consumptions, Dual and Quad Core BGA CPU
- Fusion Controller Hub A70M
- 4 independet display outputs
- 10x USB 2.0, 4x USB 3.0
- 1x PCIe x8 & 1x PCIe x4
- 2x SO-DIMM, up to 8GB each (in total 16 GB)
- KT embedded controller for intelligent multiple I/O
- Longterm available up to 7 years
- Outstanding graphic performance: OpenGL, DirectX 11
Features
| Form Factor | Mini-ITX |
| Dimensions (H x W x D) | 6.7� x 6.7� (17,0 cm x 17,0 cm) |
| CPU | Supporting: AMD R-Series dual and quad Core: AMD R-Series R-252F, DC 1.9GHZ (2,4GHz), 17W, BGA AMD R-Series R-452L, QC 1.6GHZ (2,4GHz), 19W, BGA AMD R-Series R-460L, QC 2.0GHZ (2,8GHz), 25W, BGA |
| Chipset | AMD Fusion Controller Hub A70M |
| Main Memory | Up to 16 GB DDR3 (max. 2x 8 GB) |
| Front Side Bus | Unified Media Interface (UMI) (5.0 GT/s) |
| Graphics Controller | Integrated Graphics AMD Radeon HD 7000G 2D Acceleration Features Open GL 4.2 & 2.0, DirectX 11 compliant 3D Acceleration Features, Dedicated hardware (UVD 3) for H.264, VC-1, DivX and MPEG2 decode |
| Graphics | 3x Display Port Optionally Add-On card with 1x DisplayPort Up to 4x independent display outputs |
| Ethernet Controller | Intel Pearsonville xGB PCI Express Ethernet controller (WGI211ATSLJXZ) |
| Ethernet | 2x 10/100/1000 Mbits Intel GB LAN |
| Hard Disk | 5 x SATA (SATA 150/300/600) w. RAID 0,1,10 support 1x mSATA |
| Parallel Port | n/a |
| PCI | n/a |
| PCI Express / PCI support | 1x PCIe x8 (in mechanically x16 slot) 1x PCIe x4 (in mechanically x16 slot) |
| Mini-PCI | 1x mini-PCI Express (mechanically sharing space with mSATA slot) |
| USB | 4x USB2.0/3.0 9x USB2.0 |
| IEEE 1394 Firewire | n/a |
| Serial | 2x RS232 |
| Rear I/O | 4x USB 2.0 2x DP + 2x USB 2.0/USB3.0 1x DP 1x 2x RJ45 1x Audio Jack 1x 4 pole External connector |
| Audio Controller | VT1708S HD Audio 7.1 channel surround sound |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | 15 Multiplexed (GPIO, DAC, ADC, PWM & TIMER) Possible 152 GPIO expansion Software Watchdog TPM KT embedded controller for feature rich intelligent I/O |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C to 60�C (32�F to 140�F) |
| Operating System | Win XP, Win7 (32 and 64bit), WES7, Win 8 (32 and 64bit) |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard EN 60950-1 IEC 60950-1(ed.2) CSA C22.2 No. 60950-1 ROHS |
Datasheets
Datasheet KTA70M/mITX
Datasheet KTA70M/mITX
[ kta70m-mitx.pdf, 1.57 mb, May 18, 2016 ]
Manuals
KTA70M/mITX Users Guide
[ ktd-n0861-d_kta70m-mitx-users-guide.pdf, 3.48 mb, May 17, 2016 ]
Tech Spec Sheet
Tech Specs MINI-ITX
[ tech-spec_mini-itx.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| KTA70M/mITX DC 1.9GHZ 810522-4500 |  | KTA70M/mITX with DC 1.9GHZ (2,4GHz), R-252F, 17W, BGA | � |
| KTA70M/mITX QC 2,0GHZ 810520-4500 | | KTA70M/mITX with QC 2,0GHZ (2,8GHz), R-460L, 25W, BGA | � |
Accessories
| DDR3-1066 SODIMM 1GB 1060-2502 | | DDR3, 1GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3, 1GB, 1333MHZ 1054-3780 | | DDR3, 1GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 1GB 1060-2505 | | DDR3, 1GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3-1066 SODIMM 2GB 1060-2508 | | DDR3, 2GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 2GB 1060-2512 | | DDR3, 2GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3, 2GB, 1600MHZ 1055-8136 | | DDR3, 2GB, 204P, 1600MHZ SODIMM | � |
| DDR3-1066 SODIMM 4GB 1060-2510 | | DDR3, 4GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 4GB 1060-2514 | | DDR3, 4GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 8GB 1060-2504 | | DDR3, 8GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| Accessory kit for KTA70M, KTA75 826600 | | 2x COM cable (2.54mm, 100mm), 1x Feature 44pol 1 to 1 calbe (300mm), 1x Bracket Cable 6-Pin to PS2-Kbd-Mse, 1x Front Panel Open-End cable, 1x Audio Open-End cable, 6x SATA cable (500mm), 1x ATX Power cable (for KTA70M), 1x Power Out cable (for KTUS15), 1 | � |
| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |
| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| Power Out Cable 1027-3669 | | Power Out Cable | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| USB Bracket 821401 |  | USB Bracket | more |
| ATX Power for KTA70M 1052-5814 | | ATX Power for KTA70M | � |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
