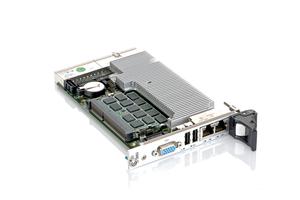

CP3003-SA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3003-SA
- Manufacturer:
- Kontron
- Description:
- 3rd Generation Intel Core, Processor based 3U CompactPCI CPU Board
- Availability:
- Available: Submit request for datasheets and more information.
Memory-demanding applications can make use of up to 16GB 1600MHz DDR3 SDRAM with Error Checking and Correction (ECC). For onboard data storage the CP3003-SA offers up to 32GB on a dedicated SLC SATA Flash module or a HDD/SSD and CFast option on the 8HP extension module.
Specifications
- Latest Intel Core, technology, quad- and dual-core processors
- Up to 16 GB DDR3 memory with ECC
- Up to 32 GB SATA NAND Flash
- Up to 3x GbE, WOL Support
- Up to 3x independent graphics outputs
- SATA 6Gb/s and USB3.0
- Optional TPM support
- Support of PCI Passive Mode
- Version for extended temp. E2 (-40�C up to +85�C)
- Broad range of software support: Linux, VxWorks, Windows XP, Windows 7, Windows Embbeded Standard 7, Windows Server 2003/2008 ...
Features
| CPU | Intel Core,i7 up to quad-core 2.1 GHz |
| DRAM | Max 16 GByte DDR3 1600 MHz (2x SODIMM's), with ECC |
| Chipset | QM77 |
| 4HP Version | 2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs |
| Ethernet | Up to 3x 1000Base-Tx, 2x with WOL (Wake-On-LAN) support |
| Flash Disk | SATA NAND Flash Module, up to 32GB |
| Graphics | Internal |
| Power Consumption | TBD |
| Rear I/O | Optional |
| System peripheral | Peripheral Mode supported |
Datasheets
CP3003-SA Datasheet
[ datasheet_cp3003-sa.pdf, 1.92 mb, Sep 17, 2015 ]
Datasheet EFIBIOS B3E01 for CP3003-SA
[ ds_efibios_b3e01.pdf, 0.24 mb, Nov 12, 2014 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw69_bsp_b3c01_r11_01.pdf, 0.77 mb, Nov 27, 2013 ]
Datasheet for Linux BSP B3C01
[ dat_lin_bsp_b3c01_2.pdf, 0.86 mb, Nov 5, 2014 ]
Manuals
CP3003-SA uEFI BIOS Manual
[ 1053-4014_20_sk-man-uefi-bios-cp3003-sa_cp3003-v.pdf, 0.26 mb, Nov 27, 2013 ]
CP3003-SA Introduction Manual
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v_introduction.pdf, 0.26 mb, Nov 27, 2013 ]
CP3003-SA User Manual [restrictions apply]
[ 1052-6929_20_sk-man-cp3003-sa_cp3003-v.pdf, 1.93 mb, Nov 27, 2013 ]
