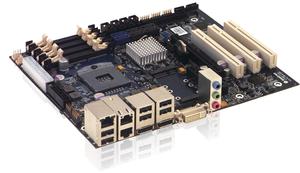

- KTQM67/FLEX embedded & longterm available Flex-ATX Motherboard with Intel QM67 chipset
- Availability:
- Available: Submit request for datasheets and more information.
Based on the Mobile Intel QM67 chipset, the Kontron KTQM67/FLEX embedded motherboard with long-term availability offers an ideal performance-per-watt ratio and the very latest interface technology, like gen 2.0 PCI Express x16, without neglecting embedded designers' needs: They still carry, for example, 6 x SATA (incl. 2 x SATA III) nterfaces alongside the 14 USB 2.0 interfaces. The state of the art graphics performance is supported by 2 x Display Port, DVI-I & 1 x LVDS interface. An unique multipurpose KT Feature Connector supports up to 160 GPIO's. The embedded motherboards also offer more PCB layers than conventional motherboards designed for the consumer market, in order to achieve excellent signal qualities and optimize electromagnetic compatibility. Kontron۪s newest embedded Mini-ITX motherboard also supports Intel Active Management Technology (Intel AMT 7.0) for remote management and easy maintenance resulting in higher system availability and lower total costs.
Specifications
- 2nd Generation Intel i7-,i5,-i3 2Core and 4Core CPUs & Intel QM67 Chipset
- Long term available embedded Flex-ITX-Motherboard (up to 7 yers after release)
- High graphics performance incl. 2 x Display Port, LVDS & DVI
- 6 x SATA (incl. 2 x SATA III), 14 x USB 2.0, 3 x Intel GB LAN incl. Intel AMT 7.0 support
- mSATA interface highspeed compact SSD storage
- ATX power supply
- Gen 2.0 PCIe x16 & PCIe x1, 3 x PCI
- Unique multipurpose KT Feature Connector
Features
| Form Factor | Flex-ATX |
| Dimensions (H x W x D) | 9' x 7,5' 22,86 cm x 19,05 cm |
| CPU | Supports: Intel i7-,i5,-i3 2 Core and 4 Core CPUs; Intel Celeron Processor B810 Intel Celeron Processor B810, 1.60GHz, dual Core, 35W Intel Core i7-2710QE Processor, 2.10GHz, quad Core, 45W Intel Core i3-2330E Processor, 2.20GHz, dual Core, 35W Intel Core i5-2510E Processor, 2.50GHz, dual Core, 35W |
| Chipset | Intel QM67 |
| Main Memory | Up to 32 GB DDR3 (max. 4x 8 GB) |
| Front Side Bus | 5 GT/s point-to-point DMI 2.0 interface to PCH Four lanes in each direction |
| Graphics Controller | Intel HD Graphics 3000 integrated |
| Graphics | 2 x Display port 1x DVI-I 1x LVDS / Embedded DP, HDMI via Adapter (1 x PCIe x 16 PCI slot) |
| Ethernet Controller | 1x Intel Lewisville 82579LM 2x Intel Hartwell 82574L |
| Ethernet | 3 x Intel GB LAN (1x AMT 7.0 support) |
| Hard Disk | 6 x SATA (4x SATA150/300 and 2x SATA600) w. RAID 0,1,5,10 support mSATA for SSD Storage |
| Parallel Port | LPT in a FFC connector |
| Flash Onboard | n/a |
| PCI | 3x PCI |
| PCI Express / PCI support | 1x PCIe x 16 1 PCIe x 1 |
| Mini-PCI | 2 x mini PCI-Express |
| USB | 14 x USB 2.0 |
| IEEE 1394 Firewire | 2x IEEE1394a (Pin header) |
| Serial | 4x RS232 |
| Rear I/O | 2x Dual USB +Displayport 1x Dual USB + Ethernet 1x Dual Ethernet 1x DVI Audio 3x |
| Audio Controller | HD Audio 7.1 Mic x2 CDROM in and SPDIF |
| Keyboard | Internal PS2 Mouse/Keyboard connector |
| Special Features | DAC up to 160 GPIO TPM 1.2 KT embedded feature port with ADC, |
| BIOS | AMI BIOS |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0�C - 60�C (32�F - 140�F) |
| Operating System | WES7 32/64bit Linux VxWorks, WindRiver Linux |
| Compliance | EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard IEC 60950-1: 2005, 2nd Edition UL 60950-1 CSA C22.2 No. 60950-1 |
Datasheets
KTQM67/FLEX Datasheet
[ ktqm67-motherboard-family.pdf, 0.98 mb, Jan 15, 2015 ]
Manuals
KTD-N0819 KTQM67 Users Guide
[ ktd-n0819-m_ktqm67-users-guide.pdf, 5.32 mb, May 17, 2016 ]
Variants
| KTQM67/FLEX 810420-4500 | | KTQM67/FLEX embedded & longterm available Flex-ATX Motherboard with Intel QM67 chipset | more |
| Intel Celeron B810 Processor 1044-7732 |  | Intel Celeron B810 Processor, 1.60GHz, dual Core, 2MB Cache, 35W, PGA988, Embedded | � |
| Intel Core i3-2330E Processor 1044-7726 | | Intel Core i3-2330E Processor, 2.20GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i5-2510E Processor 1044-7635 | | Intel Core i5-2510E Processor, 2.50GHz, dual Core, 3MB Cache, 35W, FCPGA988, Embedded | � |
| Intel Core i7-2710QE Processor 1044-7623 | | Intel Core i7-2710QE Processor, 2.10GHz, quad Core, 6MB Cache, 45W, FCPGA988, Embedded | � |
Accessories
| DDR3-1066 SODIMM 1GB 1060-2502 | | DDR3, 1GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3, 1GB, 1333MHZ 1054-3780 | | DDR3, 1GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 1GB 1060-2505 | | DDR3, 1GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |
| DDR3-1066 SODIMM 2GB 1060-2508 | | DDR3, 2GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 2GB 1060-2512 | | DDR3, 2GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3, 2GB, 1600MHZ 1055-8136 | | DDR3, 2GB, 204P, 1600MHZ SODIMM | � |
| DDR3-1066 SODIMM 4GB 1060-2510 | | DDR3, 4GB, 204P, 1066MHZ, PC3-8500 SODIMM | � |
| DDR3-1333 SODIMM 4GB 1060-2514 | | DDR3, 4GB, 204P, 1333MHZ, PC3-10600 SODIMM | � |
| DDR3-1600 SODIMM 8GB 1060-2504 | | DDR3, 8GB, 204P, 1600MHZ, PC3-12800 SODIMM | � |

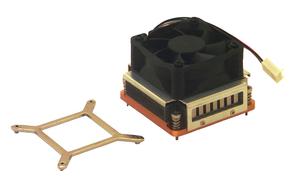

| Active Cooler for KTQM67 1044-9447 |  | Active Cooler for socket G2 (rPGA 988B) ZIF socket CPU | more |
| Active Cooler for KTQM67 33mm longlife 1052-6345 | | Active Cooler for KTQM67 for socket G2 (rPGA 988B) 33mm longlife | � |
| Accessory kit for KTQM67, KTQM77 826598 | | 4x COM cable (2.54mm, 100mm), 2x FFC 100mm 32pin cable, 1x LPT Module, 1x 6-Pin to PS2-Kbd-Mse cable, 1x Front Panel Open-End cable, 1x Audio Open-End calbe, 1x LVDS Open-End cable, 6x SATA cable (500mm), 2x IEEE1394 Bracket, 4x Cable+Bracket (USB, 10pol | � |

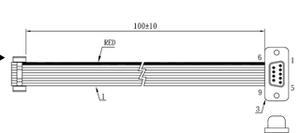

| COM port Cable, 100mm 821017 |  | COM port Cable, 2.54mm, 100mm long | more |
| COM port Cable, 200mm 821016 | | COM port cable, 2.54mm, 200mm long | � |
| SATA Cable 500mm 821035 |  | SATA Cable 500mm long | more |

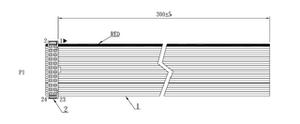

| Front Panel Open-End Cable 821042 |  | Front Panel Open-End Cable | more |
| Audio Open-End Cable 821043 |  | Audio Open-End Cable | more |
| LVDS Open-End Cable 821515 | | LVDS Open-End Cable 540mm | more |
| AUO G121SN01 Cable 821518 | | Cable for AUO G121SN01 | more |
| LCD Cable for LG.Philips LM150X08 821520 | | LCD cable for LG.Philips LM150X08 | � |
| LCD LVDS Cable for JAE FI-S20 1027-2631 | | LCD LVDS Cable for JAE FI-S20 w. pull tab (i.e. for Sharp LQ104S1LG21) | � |
| LVDS 1:1 Cable 1027-3591 | | LVDS 1:1 cable, 2x 40 pin connector, 405mm | � |
| DP to VGA Adapter 1045-5779 | | DP to VGA Adapter | � |
| DP to DVI Adapter 1045-5780 | | DP to DVI Adapter | � |
| DVI-CRT Adapter 822001 | | DVI-CRT adapter | � |
| Cable COM2 100mm Bracket 821036 | | Cable COM2 100mm Bracket | more |
| USB Bracket 821401 |  | USB Bracket | more |
| IEEE1394 Bracket Dual 6-pole 821040 | | IEEE1394 Bracket Dual 6-pole | more |

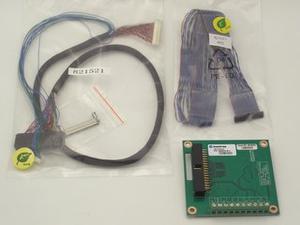

| LDI (Large Display Interface) Evaluation Kit 820971 |  | LDI Evaluation Kit contains of:820975 LDI module,821521 Evaluation Cable Kit and1027-3591 LVDS Cable 2x40p conn 405 mm | more |
| LVDS Connector for cable 910000005 |  | LVDS Connector for cable | more |
