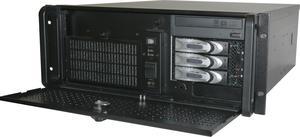

VRack 4U DZ77 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VRack 4U DZ77
- Manufacturer:
- Kontron
- Description:
- Availability:
- Available: Submit request for datasheets and more information.
VRack offers high investment protection thanks to long-term availability and ensures reliable operation in particularly harsh industrial environments, e.g. with dust, temperature and shock loads.
Specifications
- AC PSU 400 W 80AC
- Intel Rapid-Storage-Technology
- RAID 0,1,5,10
- Supporting 3rd Gen CPUs
- 3 x 5,25' Drive bays , 1* 3,5' drive bay
- 1 PCIe 3.0 x16
- Dual DDR3-1600/1333/1066
- AC PSU 400 W 80+
Features
| CPU | 3rd Generation Intel Core, i7 Desktop Processors |
| Chipset | Z77 |
| Approvals | CE |
| Connectivity | Front: 2* USB 2.0, REAR: 1x LAN 10/100/1000,1x HDMI, 2x USB 3.0, 4x USB 2.0, HD Audio, PS/2 M+K |
| Cooling | 2 x 92mm fans |
| Dimensions (H x W x D) | mm: 177 x 482.6 x 508 (inches: 7 x 19 x 20) |
| Free Slots | 3x PCI 32bits/33MHz, 1x PCIe x4, 1x PCI_e x1, 1x PCIe x16 |
| Drives | 1*3,5 bay , 3*5,25 bay, 2* 3,5 internal |
| Main Memory | 32 GB Dual DDR3-1600/1333/1066 |
| Management | No |
| Mounting | Rack Mount, Desktop |
| Operation Temperature | 0C� to 45 C� |
| Verified OS | Windows XP, Windows 7 (32 bit or 64 bit) |
| Weight | ~ 18 kg |
Datasheets
Data sheet VRack 4U DZ77
[ datasheet_vrack-4u_dz77_web.pdf, 1.94 mb, Nov 27, 2013 ]
Manuals
User Manual VRack 4U
[ vrack_4u_user_guide_v0_99_prelim_en.pdf, 1.65 mb, Nov 27, 2013 ]
Variants
| KISS Stor 1 KISS Stor 1 |  | Integrated Industrial Raid 1 Subsystem for KISS 4U and KISS 4 U Short | more |
| KISS DA425 KISS DA425 |  | Disk Array for 4x 2.5' Hard drives | more |
| KISS DA335 KISS DA335 |  | This drive enclosure converts 2 x 5.25' drive bay to 3 x 3.5' hot-swap bays, supporting SATA interface. | more |
| KISS DA135 KISS DA135 |  | Rugged removable HDD carrier | more |
| KISS DA435 DA435 |  | Rugged removable HDD cannister for 4x 3.5' HDD | more |
