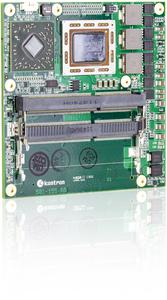

COMe-cTH6 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- COMe-cTH6
- Manufacturer:
- Kontron
- Description:
- COM Express compact Pin-out Type 6
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron COMe-cTH6 COM module complies with the Rev. 2.0 COM Express specification that provides for a compact form factor (95 x 95 mm) and new COM Express Type 6 connector definitions. The COMe-cTH6 module design enables the development of graphics-intensive applications based on the Advanced Micro Devices (AMD) R-Series Advanced Processing Unit (APU) and the AMD M3 Fusion Controller Hub (FCH) using the secure development path of an established, future-proof industry standard, the COM Express compact form factor and pin-out Type 6.
The AMD processor on the Kontron COMe-cTH6 module has two integrated memory controllers for up to 8 GBytes (2x4GB) per channel of DDR3 memory. Support for the latest 3D graphics is provided by the integrated RadeonTM graphics controller which also provides four independent display interfaces supported with daisy chaining and a maximum resolution of 2560 x 1600 x 60 Hz (Display Port) or 1920 x 1200 x 60 Hz (HDMI/DVI). With seven PCI Express x1 lanes and 8 PEG lanes for flexible configurations, the COMe-cTH6 module is ideal for multi-interface designs and brings the added benefit of low power consumption. These special features make this 95 x 95 mm compact Computer-on-Module a key solution for applications such as multimedia content delivery, outdoor digital signage, infotainment kiosks, POS/POI devices, panel PCs, and professional gaming systems that require high-level graphics performance and support for the latest APIs like DirectX 11, and where low thermal power design is also an advantage.
All modules in the Kontron COM Express family are compliant with the COM Express standard. These modules also take advantage of the Kontron Embedded Application Programming Interface (Kontron EAPI), which is cross-platform middleware that is both form factor and operating system independent. This ensures easy interchangeability as well as design scalability and future migration paths.
The COMe-cTH6 module is a complete PC with standard interfaces such as USB 2.0 and USB 3.0, Gigabit Ethernet, SATA 3.0, as well as additional features like high-definition audio (HDA) and ACPI 3.0, Fast I2C, SPI, LPC, RTC, 2x serial ports (RX, TX) and S5 Eco.
Specifications
- AMD embedded R-Series Advanced Processing Unit (APU)
- integrated Radeon, HD 7000 Series GPU
- Superior graphics support & Multi-Monitor use up to 4 displays
- Support for Direct X 11, OpenCL, 1.1 and OpenGL 4.2
Features
| Compliance | COM Express compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | AMD R-Series APU R-460L (4x2.0 GHz, 25W) AMD R-Series APU R-452L (4x1.6GHz, 19W) AMD R-Series APU R-260H (2x2.1GHz, 17W) |
| Chipset | AMD, FusionControllerHub A70M M3 |
| Main Memory | 2x DDR3-1333 SO-DIMM up to 2x4GB |
| Graphics Controller | AMD Radeon,HD7620G (R-460L) AMD Radeon,HD7600G (R-452L) AMD Radeon,HD7500G (R-260H) |
| Ethernet Controller | Intel I210-AT |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | 4x SATA 6Gb/s |
| Flash Onboard | - |
| PCI Express / PCI support | 1x PEG x8 7x PCIe x1 |
| Panel signal | DDI1: DP++ DDI2: DP++ shared with LVDS DDI3: DP++ shared with VGA VGA: Yes LVDS: Dual Channel 18/24bit |
| USB | 4x USB 3.0 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Audio | High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | AMI Aptio UEFI |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors Trusted Platfom Module TPM 1.2 |
| Operating System | Windows 8, Windows 7, WES7, Linux |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating |
| Supported Modules | 36013-xxxx-xx-x: COMe-cTH6, commercial temperature |
Datasheets
Datasheet COMe-cTH6
[ datasheet_come-cth6.pdf, 0.95 mb, Sep 4, 2015 ]
Manuals
User's Guide - preliminary
[ come-cth6_ug_v0.83_draft.pdf, 2.01 mb, Jan 10, 2014 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cTH6 R-460L 36013-0000-20-4 |  | COM Express compact pin-out type 6 Computer-on-Module with AMD Trinity APU and Hudson-H3 FCH, 2x DDR3 SO-DIMM socket | � |
| COMe-cTH6 R-452L 36013-0000-16-4 | | COM Express compact pin-out type 6 Computer-on-Module with AMD Trinity APU and Hudson-H3 FCH, 2x DDR3 SO-DIMM socket | � |
| COMe-cTH6 R-260H 36013-0000-21-2 | | COM Express compact pin-out type 6 Computer-on-Module with AMD Trinity APU and Hudson-H3 FCH, 2x DDR3 SO-DIMM socket | � |
Accessories
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | more |
| HSP COMe-cTH6 threaded 36013-0000-99-0 | | Heatspreader for COMe-cTH6, threaded mounting holes | � |
| HSP COMe-cTH6 through hole 36013-0000-99-1 | | Heatspreader for COMe-cTH6, through holes | � |
| HSK COMe-cTH6 active thread 36013-0000-99-0C01 | | Active cooling solution for COMe-cTH6, threaded mounting holes | � |
| HSK COMe-cTH6 passive thread 36013-0000-99-0C02 | | Passive cooling solution for COMe-cTH6, threaded mounting holes | � |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 | | COM Express Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 | | COM Express Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| DDR3-1600 SODIMM 1GB 1060-2506 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1600 SODIMM 2GB 97015-2048-16-0 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1600 SODIMM 4GB 97015-4096-16-0 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
